Gear Transmission type Manual Butt Fusion Machine 63mm to 160mm
- group name
- Manual Butt Fusion Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP160C
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:17:59 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Terms of Payment T/T, Western Union, Paypal,X Transfer
FOB Port Shanghai, Ningbo
Certificate CE
MOQ 1 Set
Business type fusion equipment manufacturer
Packging & Delivery
- 70cm x49cm x60cm
-
Min Order1 piece
Briefing
The manually operated 160mm butt fusion machine is featured by easy use, lightweight and quick operation.
Detailed

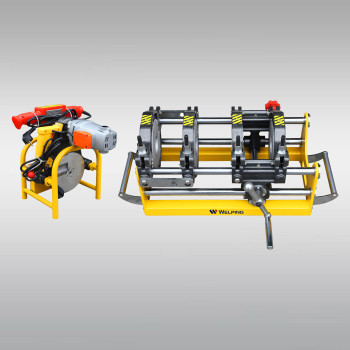

Gear Transmission type Manual Butt Fusion Machine 63mm to 160mm
DETAILS
This small manual Butt fusion machine provides standard welding range of 63mm to 160mm, with unique gear transmission structure. mainly consists of 2 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating. It's an effective, trouble free connecting for PE, PP, PVDF pipes.
FEATURES
※ Robust structure of carriage part with streamline outlook
※ Swivel handle with gear transmission of extremely smooth operating structure
※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES |
|
|
Main Frame
|
1 Set
|
|
Heating Plate
|
1 Set
|
|
Trimmer
|
1 Set
|
|
Reducers
|
1 Set
|
Tool Box | 1 Set |
PARAMETER
|
Mode
|
WP160C
|
|
Suitable materials
|
PE,PP, PB. PVDF
|
|
Range
|
63-75-90-110-125-140-160mm
|
|
Power supply
|
110V/220V
|
Frequency | 50HZ |
Total power | 2.6 KW |
Heating plate | 1.5 KW |
Planing tool | 1.1 KW |
Max.Temperature of heating plate | 270ºC |
Temp.Deviation in Surface | ±5ºC |
Total Weight | 62kg |
Net weight | 50kg |
Packing Size | 70*49*60cm |
PRODUCT DETAILS MAP
Basic Frame
· Complete welded frame structure, steady and robust
· Hand-wheel driving, simple and convenient
· Chromated integral shaft made of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting &
Spraying treatment
Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Gear transmission instead of chain
· Motor with pure copper wiring
Heating Plate
- Teflon Coating from Japan
- Thermocouple sensor
- Bakelite handle
- Digtal display
Reducers
63-75-90-110-125-140-160mm reducers
