Manual Testing Pump for Used in Heating, Plumbing 50Bar
- group name
- Test Pumps
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- RP50
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 20:09:03 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Color Red or Customize
Package 1PC/CTN
Packging & Delivery
-
Min Order1 piece
Briefing
The manual test pump is used for testing of leaks in installations, heating, compressed air, refrigeration systems, plumbing
Detailed
INTRODUCTION

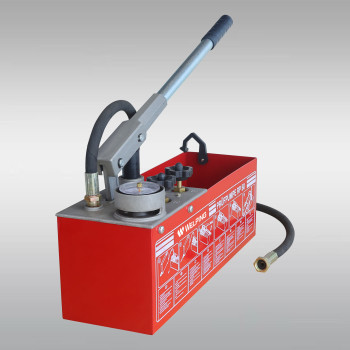

50Bar Hand Pressure Test Pump
The hand pressure test pump is used for verification and testing of leaks in installations, especially for use in heating, compressed air, refrigeration systems, oil inslallations, sprinkler systems, plumbing, sanitary and hydraulic systems and other small bore pipe applications. In compliance with the technical regulations in force, up to 60 bar and can be customized, equipped with stainless steel tank capacity (12 L), horizontal.Can also be used for small transfer, fillings, and pressurisation of the closed systems.
※ Large capacity tank: 12 L
※ Finely scaled (scaling 0.1 bar) pressure gauge is optional.
※ Tank with Cold-resistant coating ensure an extremely long service life.
※ A drag indicators displays the preset pressure so that a loss of pressure in the system can be detected easier.
※ Robust precision testing pump for pressure testing of water lines and containers up to 60 bar.
※ Test Pump with high compression hose. No measuring errors which will be caused by expansion of the hose.
※ Reliable and precise measurement results: Test pump with double valve system (twin valve) allows self-testing of the pump, as well as a precise fine adjustment of the pressure.
※ Can pump water and non acids liquids, i.e. antifreeze solutions
PARAMETER
|
Mode
|
RP50
|
|
Water Tank
|
Steel
|
|
Testing Capacity
|
0-50Bar
|
|
Tank Capacity
|
12L
|
Connection | 1/2"BSPP |
Volume/Stroke | 45ml |
Piston | Nylon |
Valve | Aluminum |
Gross Weight | 8kg |
Net weight | 7.5kg |
Packing Size(for frame) | 52*18*31cm |
PRODUCT DETAILS MAP
12 L Water Tank
Tank with Cold-resistant coating ensure an extremely long service life.
Can pump water and non acids liquids, i.e. antifreeze solutions
Pressure Gauge
Finely scaled (scaling 0.1 bar)
Economical, practical, safe and rest assured.
Newly upgraded dial with clear scale.
SImple and intuitive, accurate data display.
Not only shows in BAR but also PSI
High Compression Hose
High compression resistance
Anti-aging
Not easy to crack
No measuring errors which will be caused by expansion of the hose.
Filter
Microfilter inlet protected against dirt,
to ensure a better functioning
