Manual Hydraulic Pipe Bending Machine with Tripod for 1/2inch to 2inch/3inch/4inch Steel Pipes
- group name
- Pipe Bending Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP-2J/3J/4J
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Sat, 23 Nov 2024 15:59:50 GMT
Paramtents
Color Yellow
Bending Capacity 1/2"-2"; 1/2"-3"; 1/2"-4"
Package Plywood case
Packging & Delivery
-
Min Order1 piece
Briefing
The manual hydraulic pipe benders are designed for precision cold bending of thick-wall pipes for gas, water and steam pipes
Detailed
INTRODUCTION

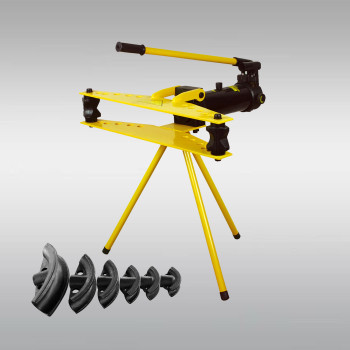

1/2"-2"/3"/4" Manual Hydraulic Pipe Bender
*The manual pipe bender is a cold-formed pipe bender. It is an instrument that uses human power as a driving source and mechanical lever as a principle to perform pipe bending operations. In order to save more effort, the hydraulic element was added, and a manual hydraulic pipe bender was produced.
*Manual pipe bender mainly has two support points and a hydraulic ejector point, the two pivot points have slotted rollers (in order to make the pipe is not easy to slip out). The apex is located in the middle of the 2 pivot points, and the apex can be changed with different dies according to the different pipe diameters, but the degree of bending must be controlled by yourself,and it is generally set by experience.
* Simple structure, small size, lightweight, easy to move and carry
* Low cost, suitable for small-scale production
* The manual hydraulic pipe benders are designed for precision cold bending of thick-wall pipes (gas, water and steam pipes, non-heated black iron pipes, galvanized pipes, schedule 40 & 80) up to 90°.
* Following GB/T 3091,DIN 2440,EN 10255,BS1387 standards.
* These benders are ideal for plumbing, sanitary and heating installation at construction sites, for apparatus and boiler making and for industrial applications.
PARAMETER
|
Mode
|
WP-2J | WP-3J |
WP-4J
|
|
Power Supply
|
Manual hydraulic |
||
Working Capacity |
1/2"-2" | 1/2"-3" | 1/2"-4" |
Hydraulic Ram Output (Ton) | 13T | 13T | 20T |
|
Ram Stroke(mm)
|
250mm | 290mm |
370mm
|
Bending Range (O.D) | ∅21.3-60mm | ∅21.3-88.5mm | ∅21.3-108mm |
Bending Shoes (Inch) | 1/2",3/4",1", 1 1/4",1 1/2",2" | 1/2",3/4",1", 1 1/4",1 1/2",2",2 1/2",3" | 1/2",3/4",1",1 1/4",1 1/2",2", 2 1/2",3",4" |
Gross Weight | 53kg | 105kg | 156kg |
Net Weight | 49kg | 95kg | 142kg |
Packing Size | 73*32*20cm | 93*40*21cm | 118*46*23cm |
PRODUCT DETAILS MAP
Elbow Butt Joint
Thickened design; Smooth edges; Connection with elbow
Adjustable Column
Suitable for bending pipe of different thickness
Bending Dies
durable bending dies
Tripod
Easy for operation
