Portable Pipe Cold Cutting Beveling Machine pipe beveling cutting machine

Portable Pipe Cold Cutting Beveling Machine pipe beveling cutting machine
Portable Pipe Cold Cutting Beveling Machine pipe beveling cutting machinePortable Pipe Cold Cutting Beveling Machine pipe beveling cutting machinePortable Pipe Cold Cutting Beveling Machine pipe beveling cutting machinePortable Pipe Cold Cutting Beveling Machine pipe beveling cutting machinePortable Pipe Cold Cutting Beveling Machine pipe beveling cutting machine
group name
Pipe cutting beveling machine
Min Order
1 piece
brand name
Fusion Equipment and Plumbing Tool|WELPING
model
WPE
Nearest port for product export
Shanghai, Ningbo
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
Acceptable payment methods
T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
update time
Thu, 21 Nov 2024 18:18:33 GMT

Paramtents

  • Color green or blue

  • Volate 220V/110V

  • Application material Stainless steel,alloy steel,carbon steel

  • Beveling capacity 18-820mm

  • Beveling method internal expansion

  • Beveling type U,single V, double V,J-type

Packging & Delivery

  • Min Order1 piece

Briefing

The internal expansion pipe beveling machine tightens the inner wall of the pipe

Detailed

INTRODUCTION

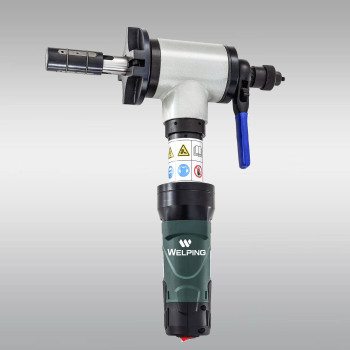

Portable Pipe Cold Cutting Beveling Machine
DETAILS
Portable Pipe Cold Cutting Beveling Machine tightens the inner wall of the pipe and drives the cutter head to rotate after multistage deceleration by the planetary reducer to process the port groove of the pipe. For pipes different materials only need to install tools of corresponding materials for safe and rapid processing,you can provide tools from different angles for groove,flat mouth and inner groove. It is the best choice for processing small mouth diameter.It is widely used in pipeline installation engineering and emergency repair in petroleum,chemical industry, natural gas,boiler,pharmaceutical,nuclear ,power,food and other industries.


FEATURES

●Automatic positoning center,fast and convenient installation. ●Application to a wide range of pipe diameters,modumar design,pipe inner wall and deep processing. ●Cold cutting without changing the pipe material. ●Can work on stainless steel,carbon steel,alloy steel and other multi specification materials,u,single V,double V,J-type weld groove,chamfer and flat mouth,and groove processing of convex flange and plane flange after butt fusion welding,light weight and easy carry.
STANDARD ACCESSORIES
Machine body
1 Set
Cutting blade
0°,30°,37.5°
Expanding Block
1 Set
Tool box  with wrenches
1 Set
Portable Pipe Cold Cutting Beveling Machine
Portable Pipe Cold Cutting Beveling Machine
Portable Pipe Cold Cutting Beveling Machine
Portable Pipe Cold Cutting Beveling Machine
 PARAMETER
Model No.
Capacity ID  (mm)
Power  (KW)
Wall thickness  (mm)
Roating speed   (RPM)
WPE30
18-28
1.2
≤15
50
WPE80
28-76
1.2
≤15
55
WPE120
40-120
1.4
≤15
30
WPE159
65-159
1.4
≤20
35
WPE252-1
80-240
1.6
≤20
16
WPE352-1
150-300
1.6
≤20
14
WPE426-1
250-426
1.8
≤20
12
WPE630-1
300-600
1.8
≤20
10
WPE850-1
600-820
2.0
≤20
9
 PRODUCT DETAILS MAP
Portable Pipe Cold Cutting Beveling Machine
Inward expansion type
Complete cooling process without changing the material of tube.
Tension installation
0-37 degree tool to beveling the pipe fast speed and high efficiency.

Portable Pipe Cold Cutting Beveling Machine
Portable Pipe Cold Cutting Beveling Machine
Tensioner
Can adjust the working capacity through tensioner.
Cutting tool
0°,30°,37.5° is standard tools ,other size optional.
Portable Pipe Cold Cutting Beveling Machine
Portable Pipe Cold Cutting Beveling Machine
