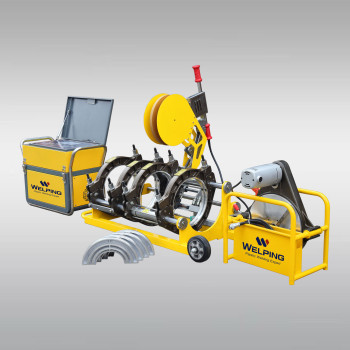

CNC Butt Fusion Welding Machine with Data Logger 315mm
- group name
- Automatic Butt Fusion Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP315Q
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:02:21 GMT
Paramtents
Fusion Capacity 315mm Max.
Lead Time 7-15 days once order confirmed
Color Yellow or Customization
Packging & Delivery
-
Min Order1 piece
Briefing
It is a versatile machine designed for butt fusion of 90mm to 315mm pipe and fittings, with durability and reliability.
Detailed
INTRODUCTION
DETAILS
WELPING CNC Butt Fusion Welding Machine , are designed to carry out butt fusion operations correctly and efficiently, for plastic pipes, material of PE, PP, PB, PVDF etc.
Suitable for using in applications of municipal drainage, natural gas, sewage, chemical, agricultural irrigation and so on.
Precision die casting aluminum clamps, steel base with cylinder & auto-jump device, provides stable performance Integrated digital control system with LCD display, welding parameters auto setting
Heating plate with high quality PTFE coating, enables swift temperature control.
FEATURES
·Due to the fully enclosed design, the hydraulic station could prevent the operators from being injured.
·A 7" inch, 16-bit true color touch screen has been installed, and buttons are also availabe.
·There are three operational lanuages: English, Russian and Chinese.
·Each operation step is reminded by a flash which can help operators quite understand it.
·All connections sockets are located at the back of hydraulic station, including sockets for planing tool and heating plate. No additional power distributor is needed.
·All welding reports could be saved immediately to internal memory after welding accomplished, or print the report. Meanwhile, it is available for downloading through the USB interface.
·Power supply voltage, frequency, pressure and heating plate temperature are always detected by PLC control unit.
STANDARD ACCESSORIES |
|
|
Main Frame
|
1 Set
|
|
Heating Plate
|
1 Set
|
|
Trimmer
|
1 Set
|
|
Reducers
|
1 Set
|
Tool Box | 1 Set |
PARAMETER
|
Mode
|
WP315Q
|
|
Suitable materials
|
PE,PP, PB. PVDF
|
|
Range
|
90-110-160-200-250-315mm
|
|
Power supply
|
110V/220V
|
Frequency | 50HZ |
Total power | 5.85KW |
Heating plate | 3.1KW |
Planing tool | 2.0KW |
Hydraulic Unit | 0.75KW |
Max Temperature of Heating plate | 270℃ |
Pressure adjusting range | 0-6.3Mpa,Auto |
Temp.Deviation in Surface | ±5ºC |
Total Weight | 273kg |
Net weight | 253kg |
Packing Size 1 | 139*85*77cm |
Packing Size 2 | 81*55*65cm |
PRODUCT DETAILS MAP
Basic Frame
· 4 Jaw Clamps to ensure precise alignment
· Italy DNP quick coupler
· Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel
· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Steel plate cutting clamp with sandblasting &spraying treatment
· Base made of Q235 steel with spraying treatment
Planing Tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Casting aluminum frame of motor with good heat dissipation performance
· Gear transmission
· Motor with pure copper wiring
Planning tool
· Standard equipping pressure more stable
· Fully enclosure structure shielding splash and dirt
· Electricity leakage protection switch
· 380V asynchronous motor
· Data logger(optional)
· Integrated digital control system with LCD display, welding parameters auto setting
Reducers
90-110-160-200-250-315mm reducers
DOWNLOAD
