High Pressure Hydraulic Pump Industrial Electric Torque Wrench Pump
- group name
- Hydraulic Pumps
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WPR
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:16:30 GMT
Paramtents
Color Black
Max working pressure 700bar
Tank Capacity 5.5L
Flow(Low-Mid-High) 5.5-1.4-0.7L/min
Power 0.9KW
Packging & Delivery
-
Min Order1 piece
Briefing
Combine independent and complete hydraulic device composed of a power unit, an electrical unit, a control device, etc.
Detailed
INTRODUCTION
DETAILS

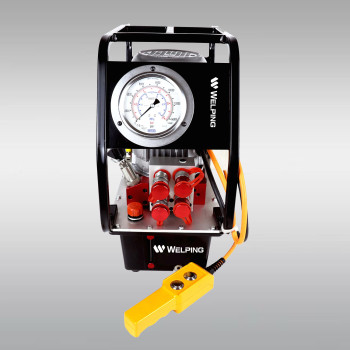

WPR Electric Torque Wrench Pump series is a special pump for hydraulic wrench. It is assembled in an integrated manner.
It combine independent and complete hydraulic device composed of a power unit, an electrical unit, a control device, etc.
The working pressure is high, and the oil pressure of the high-pressure outlet can be adjusted arbitrarily between 70 and 700 bar(10000psi).
FEATURES
●Compact three-stage pump for operation with hydraulic wrenches.
●Remote controls.
●Multipoint connection for more torque wrenches available on option.
●Three stage pump unit driven electric engine or air hydraulic.
●Oil cooler for continuous operation - supporting and protecting steel bracket.
●Ǿ 100 diameter pressure gauge, aluminum oil tank with oil level indicator.
●nfinitely variable pressure adjustment between 0-10000 psi.
●Adjustable maximum pressure for tool return stroke.
●Designed for continuous operation, hour meter on option.
STANDARD ACCESSORIES |
|
|
Machine body
|
1 Set
|
|
Control Switch
|
1 Pc
|
Quick Coupler | 2 Sets |
PARAMETER
|
Catalog No.
|
675060
|
675061
|
|
Model No.
|
WPR-2
|
WPR-4
|
|
Operating Wrench
|
2
|
4
|
|
Tank Capacity
|
5.5L
|
5.5L
|
|
Flow(Low-Mid-High)
|
5.5-1.4-0.7L/min
|
5.5-1.4-0.7L/min
|
Output Pressure | 70~700bar(10000psi) | 70~700bar(10000psi) |
Voltage | 220V/50HZ 110V/60HZ | 220V/50HZ 110V/60HZ |
Power | 0.9KW | 0.9KW |
Oil outputs | 2×1/4"NPT | 4×1/4"NPT |
Weight | 25kg | 27kg |
Volume | 30.5*44.5*42.6cm | 30.5*44.5*42.6cm |
PRODUCT DETAILS MAP
Valve Block Assembly
Applicable on one or two wrenches simultaneously.
Optional components(FP4),can operate four wrenches at the same time.
Adjusting pressure regulator
0~700bar adjustable (0~10000psi)
CEJN Quick Coupler from Sweden
Max. working pressure 700 bar ,Zinc plated steel
Control Switch
Connect the power and push the switch at the position of "ON".
Then press the lock button make the power pack working.
High Pressure Hose (additional)
Max. working pressure 700 bar ,twins hose.
DOWNLOAD
