air Pneumatic hydraulic torque wrench pump reliable quality
- group name
- Hydraulic Pumps
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- LP3-N
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:38:38 GMT
Paramtents
Color Black
Max working pressure 700bar
Tank Capacity 5.5L
Flow(Low-Mid-High) 8.6-2.2-1.1L/min
Power 3KW
Air Pressure(Input) 4~8 bar
Packging & Delivery
-
Min Order1 piece
Briefing
Combine independent and complete hydraulic device composed of a power unit, an electrical unit, a control device, etc.
Detailed
INTRODUCTION
DETAILS

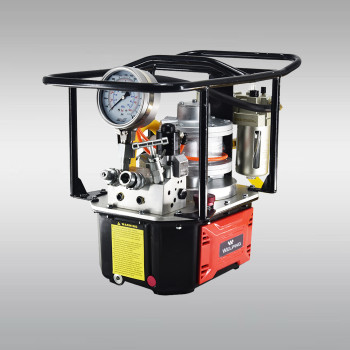

LP3 hydraulic torque wrench pump series is a special pump for hydraulic wrench. It is assembled in an integrated manner.
It combine independent and complete hydraulic device composed of a power unit, an electrical unit, a control device, etc.
The working pressure is high, and the oil pressure of the high-pressure outlet can be adjusted arbitrarily between 70 and 700 bar(10000psi).
FEATURES
●Compact three-stage pump.
●The Single valve block can be replace by component.
FP4,there by allowing 2or 4 Tools to be driven simultaneously.
●Three stage with air drive.
●Supporting continuous operation with steel frame.
●4" diameter gauge,aluminum oil tank with oil level indicator.
●Variable pressure adjustment between 70~700 bar.
●Designed for continuous operation.
STANDARD ACCESSORIES |
|
|
Machine body
|
1 Set
|
|
Control Switch
|
1 Pc
|
Quick Coupler | 2 Sets |
PARAMETER
|
Catalog No.
|
675050
|
675052
|
|
Model No.
|
LP3-N2
|
LP3-N4
|
|
Operating Wrench
|
2
|
4
|
|
Tank Capacity
|
5.5L
|
5.5L
|
|
Flow(Low-Mid-High)
|
5.5-1.4-0.7L/min
|
5.5-1.4-0.7L/min
|
Output Pressure | 70~700bar(10000psi) | 70~700bar(10000psi) |
Voltage | 220V/50HZ 110V/60HZ | 220V/50HZ 110V/60HZ |
Power | 3KW | 3KW |
Oil outputs | 4×1/4"NPT | 8×1/4"NPT |
Weight | 22kg | 25kg |
Volume | 30.5*44.5*42.6cm | 30.5*44.5*42.6cm |
PRODUCT DETAILS MAP
Valve Block Assembly
Applicable on one or two wrenches simultaneously.
Optional components(FP4),can operate four wrenches at the same time.
Adjusting pressure regulator
0~700bar adjustable (0~10000psi)
Integrated assembly
Facilitate maintenance
Oil cooler
With the high efficiency radiator the pump can work 24 hours continuously.
Quick Coupler from Sweden
Max. working pressure 700 bar ,Zinc plated steel
High Pressure Hose (additional)
Max. working pressure 700 bar ,twins hose.
