Electric Hydraulic Pump and hydraulic Torque Wrench pump
- group name
- Hydraulic Pumps
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- KLW4020
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:47:30 GMT
Paramtents
Color Black
Max working pressure 700bar
Tank Capacity 8L
Flow(Low-Mid-High) 7-1.6-0.8L/min
Power 1.1KW
Packging & Delivery
-
Min Order1 piece
Briefing
Combine independent and complete hydraulic device composed of a power unit, an electrical unit, a control device, etc.
Detailed
INTRODUCTION
DETAILS

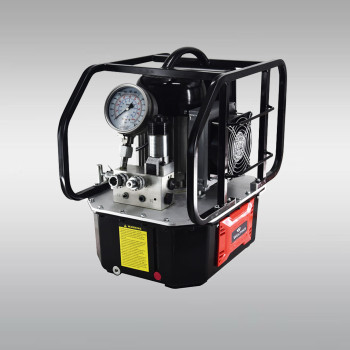

KLW hydraulic torque wrench pump series for hydraulic wrench, assembled in an integrated way an independent and complete hydraulic device
composed of oil pump, control valve, fuel tank, air motor, cooler, instrument, etc. High pressure characteristics.
The pump is supplied by high and bottom pressure oil pumps at the same time, which can obtain a larger output oil.
Under high pressure, under low pressure, the oil will be automatically returned to the oil without load through the unloading
relief valve, which can reduce power consumption, and the oil outlet pressure ,can be adjusted arbitrarily from 70 to700 bar
FEATURES
●Compact automatic three stage design.
●Applicable on one or two wrenches simultaneously.
●Aluminum oil tank with gauge.
●Have Φ100 high pressure gauge.
●Infinitely variable pressure adjustment between 70～700 bar.
●With the high efficiency radiator the pump can work 24 hours continuously.
●Can change the motor to fit the different voltage.
●Optional components, can operate four wrenches at the same time.
STANDARD ACCESSORIES |
|
|
Machine body
|
1 Set
|
|
Control Switch
|
1 Pc
|
Quick Coupler | 2 Sets |
PARAMETER
|
Catalog No.
|
675014
|
675016
|
|
Model No.
|
KLW4020-2
|
KLW4020-4
|
|
Operating Wrench
|
2
|
4
|
|
Tank Capacity
|
8L
|
8L
|
|
Flow(Low-Mid-High)
|
7-1.6-0.8L/min
|
7-1.6-0.8L/min
|
Output Pressure | 70~700bar(10000psi) | 70~700bar(10000psi) |
Voltage | 220V/50HZ 110V/60HZ | 220V/50HZ 110V/60HZ |
Power | 1.1KW | 1.1KW |
Oil outputs | 2×1/4"NPT | 4×1/4"NPT |
Weight | 27.7kg | 29.9kg |
Volume | 30.7*40.7*45cm | 30.7*40.7*45cm |
PRODUCT DETAILS MAP
Valve Block Assembly
Applicable on one or two wrenches simultaneously.
Optional components(FP4),can operate four wrenches at the same time.
Adjusting pressure regulator
0~700bar adjustable (0~10000psi)
Integrated assembly
Facilitate maintenance
Oil cooler
With the high efficiency radiator the pump can work 24 hours continuously.
Quick Coupler from Sweden
Max. working pressure 700 bar ,Zinc plated steel
High Pressure Hose (additional)
Max. working pressure 700 bar ,twins hose.
