Pneumatic hydraulic torque wrench pump

Pneumatic hydraulic torque wrench pump
Pneumatic hydraulic torque wrench pumpPneumatic hydraulic torque wrench pumpPneumatic hydraulic torque wrench pumpPneumatic hydraulic torque wrench pumpPneumatic hydraulic torque wrench pump
group name
Hydraulic Pumps
Min Order
1 piece
brand name
Fusion Equipment and Plumbing Tool|WELPING
model
KLW4030N
Nearest port for product export
Shanghai, Ningbo
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
Acceptable payment methods
T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
update time
Thu, 21 Nov 2024 18:34:38 GMT

Paramtents

  • Color Black

  • Max working pressure 700bar

  • Tank Capacity 8L

  • Flow(Low-Mid-High) 8.6-2.2-1.1L/min

  • Power 3KW

  • Air Pressure(Input) 4~8 bar

Packging & Delivery

  • Min Order1 piece

Briefing

Combine independent and complete hydraulic device composed of a power unit, an electrical unit, a control device, etc.

Detailed

INTRODUCTION

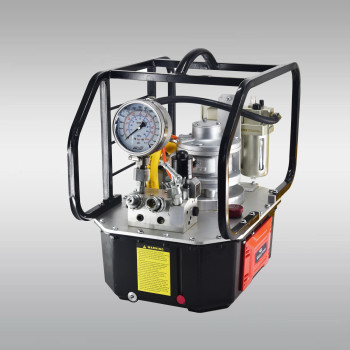

hydraulic torque wrench pump
DETAILS
KLW hydraulic torque wrench pump for hydraulic wrench, assembled in an integrated way an independent and complete hydraulic device composed of oil pump, control valve, fuel tank, air motor, cooler, instrument, etc. High pressure characteristics. The pump is supplied by high and bottom pressure oil pumps at the same time, which can obtain a larger output oil. Under high pressure, under low pressure, the oil will be automatically returned to the oil without load through the unloading relief valve, which can reduce power consumption, and the oil outlet pressure ,can be adjusted arbitrarily from 70 to700 bar.


FEATURES

●Input air(4~8 bar). ●Compact automatic three stage flow, can start in high pressure. ●Applicable on one or two wrenches simultaneously. ●Aluminum oil tank with oil gauge. ●Have Φ100 high pressure gauge. ●Infinitely variable pressure adjustment between 70~700 bar. ●With the high efficiency cooling system makes the pump suitable in extreme environment. ●Optional components(FP4),can operate four wrenches at the same time
STANDARD ACCESSORIES
Machine body
1 Set
Control Switch
1 Pc
Quick Coupler
2 Sets
 PARAMETER
hydraulic wrench pump
Catalog No.
675054
675056
Model No.
KLW4030N-2
KLW4030N-4
Operating Wrench
2
4
Tank Capacity
8L
8L
Flow(Low-Mid-High)
8.6.6-2.2-1.1L/min
8.6.6-2.2-1.1L/min
Output Pressure
70~700bar(10000psi)
70~700bar(10000psi)
Voltage
220V/50HZ
110V/60HZ
220V/50HZ
110V/60HZ
Power
3KW
3KW
Oil outputs
4×1/4"NPT
8×1/4"NPT
Weight
21.5kg
23.5kg
Volume
28.9*40.7*45cm
28.9*40.7*45cm
 PRODUCT DETAILS MAP
Valve Block Assembly for Hydraulic wrench pump
Valve Block Assembly
Applicable on one or two wrenches simultaneously.
Optional components(FP4),can operate four wrenches at the same time.
Adjusting pressure regulator
0~700bar adjustable (0~10000psi)

Wrench pump
Hydraulic wrench pump
Integrated assembly
Facilitate maintenance
Oily water separator

Hydraulic wrench pump
Hydraulic wrench pump
Quick Coupler from Sweden
Max. working pressure 700 bar ,Zinc plated steel
High Pressure Hose (additional)
Max. working pressure 700 bar ,twins hose.
High pressure hose for hydraulic wrench pump
