External Clamp Electric Hydraulic CNC pipe beveling cutting machine
- group name
- Pipe cutting beveling machine
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WPOP
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 19:37:36 GMT
Paramtents
Color Silver
Volate 220V/110V
Application material Stainless steel,alloy steel,carbon steel
Beveling capacity 25-1830mm
Beveling method Od-mounted type
Beveling type U,single V, double V,J-type
Packging & Delivery
-
Min Order1 piece
Briefing
designed for groove processing of narrow working space and small diameter pipeline section.
Detailed
INTRODUCTION
DETAILS

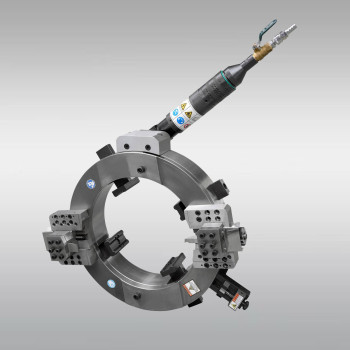

Pipe beveling cutting machine are external clamping full automatic beveling machine with compact design concept,which is designed for
groove processing of narrow working space and small diameter pipeline section.
The external clamping type positioning installation is adopted and each specification and diameter pipe has a corresponding
tensioning block which is automatic centering ,firm clamping and convenient operation.
It is widely use in pipeline installation engineering and emerg
FEATURES
●Light weight and easy carry.
●Modular design.
●Cold cutting without changing the pipe material.
●Can work on stainless steel,carbon steel,carbon steel,alloy steel and other multi specification materials,u,single V,double V,J-type weld groove,chamfer and flat mouth,and groove processing of convex flange and plane flange after butt fusion welding,light weight and easy carry.
●Air working pressure:0.8-1.0Mpa.
●Working air consumption:
1000-2000L/min.Single and double drive available
STANDARD ACCESSORIES |
|
|
Machine body
|
1 Set
|
Cutting blade | 2 pc 0°,1 pc 30°,1 pc 37.5° |
Water Spray | 1 Pc |
|
Tool box with wrenches
|
1 Set
|
PARAMETER
|
Model No.
|
Capacity OD (mm）
|
Capacity OD (inch） |
Wall thickness （mm）
Standard |
Wall thickness （mm）
Heavy duty |
Roating speed (RPM) |
|
WPOP-89
|
25-89
|
1"-3" |
≤30
|
/
|
42 |
|
WPOP-168
|
50-168
|
2"-6" |
≤30
|
≤50
|
20 |
|
WPOP-230
|
80-230
|
3"-8" |
≤30
|
≤50
|
15 |
WPOP-275 | 125-275 | 5"-10" | ≤30 | ≤70 | 15 |
WPOP-305 | 150-305 | 6"-10" | ≤30 | ≤110 | 13 |
WPOP-325 | 168-325 | 6"-12" | ≤30 | ≤110 | 13 |
WPOP-377 | 219-377 | 8"-14" | ≤30 | ≤110 | 13 |
WPOP-426 | 273-426 | 10"-16" | ≤30 | ≤110 | 12 |
WPOP-457 | 323-457 | 12"-18" | ≤30 | ≤110 | 12 |
WPOP-508 | 355-508 | 14"-20" | ≤30 | ≤110 | 11 |
WPOP-560 | 400-560 | 16"-22" | ≤30 | ≤110 | 11 |
WPOP-610 | 457-610 | 18"-24" | ≤30 | ≤110 | 11 |
WPOP-630 | 480-630 | 20"-24" | ≤30 | ≤110 | 11 |
WPOP-660 | 508-660 | 20"-26" | ≤30 | ≤110 | 11 |
WPOP-715 | 560-715 | 22"-28" | ≤30 | ≤110 | 10 |
WPOP-762 | 610-762 | 24"-30" | ≤30 | ≤110 | 10 |
WPOP-830 | 660-830 | 26"-32" | ≤30 | ≤110 | 10 |
WPOP-914 | 762-914 | 30"-36" | ≤30 | ≤110 | 10 |
WPOP-1066 | 914-1066 | 36"-42" | ≤30 | ≤110 | 9 |
WPOP-1230 | 1066-1230 | 42"-48" | ≤30 | ≤110 | 9 |
WPOP-1430 | 1219-1430 | 48"-56" | ≤30 | ≤110 | 8 |
WPOP-1630 | 1422-1630 | 56"-64" | ≤30 | ≤110 | 7 |
WPOP-1830 | 1630-1830 | 64"-72" | ≤30 | ≤110 | 6 |
PRODUCT DETAILS MAP
Inward expansion type
Complete cooling process without changing the material of tube.
Rension installatiom
0-37 degree tool to beveling the pipe Fast speed and high efficiency
Cutting tool
0°,30°,37.5° is standard tools ,other size optional.
Standard blade
Wall thickness 30mm
Heavy duty blade
Wall thickness 110mm
