Automatic feed Plate Edge Metal Side steel Pipe plate Milling Machine
- group name
- Pipe cutting beveling machine
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP-60
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 20:10:01 GMT
Paramtents
Color Silver
Volate AC380V/50hz
Application material Stainless steel,alloy steel,carbon steel,Composite
Clamp thickness 6-40mm
Spindle Speed 0-1500r/min (adjustable)
Bevel Angle 10°-60° (adjustable)
Packging & Delivery
- 130cm x91cm x85cm
-
Min Order1 piece
Briefing
The milling machine equiped with commonly used CNC blades to make the customers use the costs more cheaply.
Detailed
INTRODUCTION
DETAILS

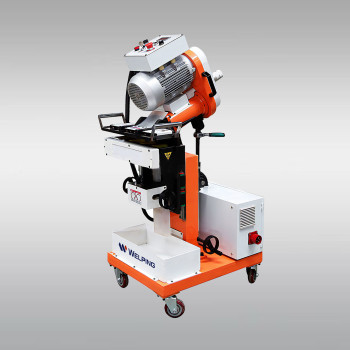

WP-60 Pipe plate Milling Machines can adjust from 10° to 60°
Rear-mounted speed reducer is good for processing narrow plate, and it is
safer Special separate design of Control Box and electrical carbinet make the operation safer Adopt multiply-cutting blades head to process plate beveled edge, therefore the milling speed of each blade is faster and easier.
The surface roughness of plate beveling face can reach to Ra3.2~6.3, it can complete meet the welding demand of pressure vessel Small in Size, light in weight Cold milling method does not affect the material property, no oxidation in beveled surface.
FEATURES
●WP-60 edge milling machine convenient and simple operation.
●The finish of groove is as high as Ra3.2-6.3.
●The milling machine equiped with commonly used CNC blades to
●make the customers use the costs more cheaply.
STANDARD ACCESSORIES |
|
|
Machine body
|
1 Set
|
Blade | 1 pc |
|
Tool box with wrenches
|
1 Set
|
PARAMETER
|
Power
|
AC 380V/50hz
|
Clamp thickness
|
6-40mm |
|
Total
|
3400W
|
Clamp width
|
＞80mm |
|
Spindle Speed
|
1050r/min
|
Clamp Length
|
＞300mm |
|
Feed Speed
|
0-1500r/min (adjustable) |
Work Height
|
820-860mm |
|
Bevel Wdith
|
1-45mm
|
Processing materials |
Carbon Steel |
Single Bevel Width | 1-15mm | Stainless Steel | |
Bevel Angle | 10-60° | Aluminum alloy | |
Automatic clamping (optional) | Composite Plate | ||
PRODUCT DETAILS MAP
Handle Wheel
Adjust Feed Volume
CNC Cutter
High Precision
New Type Cutter
More accurate when processing 90°
Angle Scale
Adjust Bevel Angle
Rubber Wheel Clamp
More tighter
Protect plate surface not damage
CNC Displayer
Accurate Adjust Feed Speed
Equip with Manual clamp
Auto clamp function is optional
