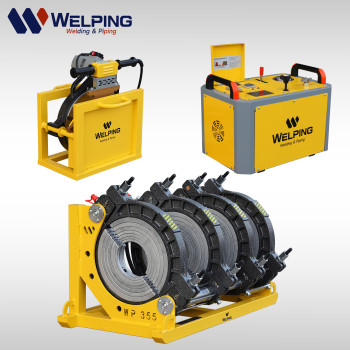

WP355A Hydraulic Butt Fusion Welding Machine for HDPE Pipe 90–355mm
- group name
- Hydraulic Butt Fusion Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP355A
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 11 Jun 2026 00:42:37 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Terms of Payment T/T, Western Union, Paypal,X Transfer
FOB Port Shanghai, Ningbo
Certificate CE
MOQ 1 Set
Business type Plastic pipe welding machines manufacturer
Packging & Delivery
-
Min Order1 piece
Briefing
WP355A is a hydraulic butt fusion welding machine designed for plastic pipes from 160mm to 355mm. It is suitable for PE, PP, PB, PVDF and PPR pipe welding in municipal drainage, water supply, irrigation and industrial pipeline projects.
Detailed
WP355A Hydraulic Butt Fusion Welding Machine 160–355mm
Product Overview
WP355A is a hydraulic butt fusion welding machine for plastic pipes from 160mm to 355mm. It is suitable for PE, PP, PB and PVDF pipe welding in water supply, drainage, irrigation, chemical pipeline and general industrial pipe installation projects.
The machine includes a hydraulic frame, heating plate, facer, reducing inserts and enclosed hydraulic unit. Its 4-jaw frame supports pipe alignment during welding, while the hydraulic control system provides adjustable pressure for different welding steps.
DETAILS
The WP355A pe pipe fusion welding is a versatile machine capable of butt fusing pipe and fittings with a variety of pressure ratings. With its small footprint and light weight, it can be carried from joint to joint yet has the same rugged durability and long-lasting performance expected of any Welping butt fusion machine.
The WP355A plastic pipe butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.
The Butt Fusion Machine is designed to butt fuse pipe sizes 160mm to 355mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
STANDARD ACCESSORIES |
|
|
Main Frame
|
1 Set
|
|
Heating Plate
|
1 Set
|
|
Facer
|
1 Set
|
|
Reducing Inserts
|
1 Set
|
Tool Box | 1 Set |
FEATURES
※ Robust structure of carriage part with streamline outlook
※ Swivel handle with gear transmission of extremely smooth operating structure
※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
PARAMETER
|
Model
|
WP355A
|
|
Suitable materials
|
PE,PP, PB. PVDF
|
|
Range
|
160-180-200-225-250-280-315-355mm
|
|
Power Supply
|
220V/50Hz, 1PH / 380V/50Hz, 3PH
|
Pressure Adjusting Range | 0–16MPa |
Total power | 6.3 KW |
Heating plate | 3.55 KW |
Facer Power | 2.0 KW |
Hydraulic Unit | 0.75KW |
Max Temperature of Heating plate | 270℃ |
Surface Temperature Deviation | ±5ºC |
Total Weight | 260kg |
Net weight | 210kg |
Packing Size(for frame,heater & facer) | 103*61*70cm |
Packing Size (for Hydraulic unit) | 86*67*91cm |
Main Components
Basic Frame
· 4 Jaw Clamps to ensure precise alignment
· Italy DNP quick coupler
· Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel
· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Steel plate cutting clamp with sandblasting &spraying treatment
· Base made of Q235 steel with spraying treatment
Enclosed Hydraulic Unit
· Standard equipping pressure more stable
· Fully enclosure structure,anti-dust,and anti-sand
· Electricity leakage protection switch
· 220V asynchronous motor
Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Casting aluminum frame of motor with good heat dissipation performance
· Motor with pure copper wiring
Heating Plate
· Bakelite handle with high insulating property and thermal insulation
· Thermocouple temperature sensor
· Heating element
· Teflon Coating imported from Daikin in Japan
· Aviation plug
Reducing Inserts
160-180-200-225-250-280-315-355mm reducers
Optional Parts
Data Logger
Records welding parameters for traceable joints, quality control, and project documentation.
Flange Holder Plate
Holds short flange fittings securely for easier alignment and stable welding.
