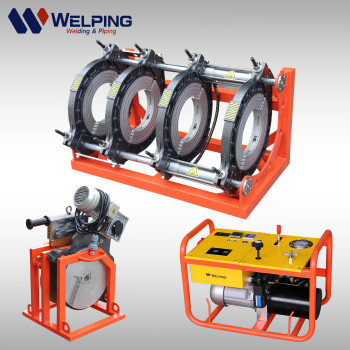

Hydraulic Butt Fusion Machine for 180MM to 400MM HDPE Pipes
- group name
- Hydraulic Butt Fusion Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP400B
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 16:49:59 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Terms of Payment T/T, Western Union, Paypal,X Transfer
FOB Port Shanghai, Ningbo
Certificate CE
MOQ 1 Set
Business type Plastic pipe welding machines manufacturer
Packging & Delivery
-
Min Order1 piece
Briefing
It is a versatile machine designed for butt fusion of 180mm to 400mm pipe and fittings, with durability and reliability.
Detailed
Hydraulic Butt Fusion Machine for 180MM to 400MM HDPE Pipes
DETAILS
The WP400B is a versatile machine capable of butt fusing pipe and fittings with a variety of pressure ratings. With its small footprint and light weight, it can be carried from joint to joint yet has the same rugged durability and long-lasting performance expected of any Welping butt fusion machine.
The WP400B hydraulic butt fusion machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

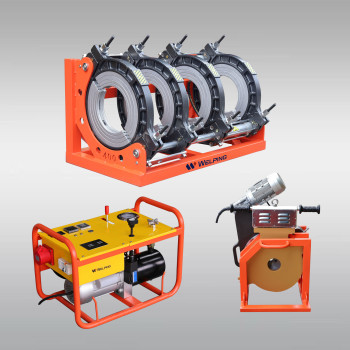

The Butt Fusion Machine is designed to butt fuse pipe sizes 180mm to 400mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
FEATURES
※ Robust structure of carriage part with streamline outlook
※ Swivel handle with gear transmission of extremely smooth operating structure
※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES |
|
|
Main Frame
|
1 Set
|
|
Heating Plate
|
1 Set
|
|
Trimmer
|
1 Set
|
|
Reducers
|
1 Set
|
Tool Box | 1 Set |
PARAMETER
|
Mode
|
WP400B
|
|
Suitable materials
|
PE,PP, PB. PVDF
|
|
Range
|
180-200-225-250-280-315-355-400mm
|
|
Power supply
|
380V/50HZ, 3PH
|
Frequency | 50HZ |
Total power | 7.7KW |
Heating plate | 5.5KW |
Planing tool | 1.1KW |
Hydraulic Unit | 1.1KW |
Max Temperature of Heating plate | 270℃ |
Temp.Deviation in Surface | ±7ºC |
Total Weight | 362kg |
Net weight | 330kg |
Packing Size( for frame ) | 133*68*75cm |
Packing Size ( for heater, trimmer ) | 86*61.5*102cm |
Packing Size ( for Hydraulic ) | 70*49*50cm |
PRODUCT DETAILS MAP
Basic Frame
· 4 Jaw Clamps to ensure precise alignment
· Italy DNP quick coupler
· Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel
· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Steel plate cutting clamp with sandblasting &spraying treatment
· Base made of Q235 steel with spraying treatment
Title
· Standard equipping pressure more stable
· Electricity leakage protection switch
· 380V asynchronous motor
Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Casting aluminum frame of motor with good heat dissipation performance
· Motor with pure copper wiring
Heating Plate
· Bakelite handle with high insulating property and thermal insulation
· Thermocouple temperature sensor
· Heating element
· Teflon Coating imported from Daikin in Japan
· Aviation plug
Reducers
180-200-225-250-280-315-355-400mm reducers
