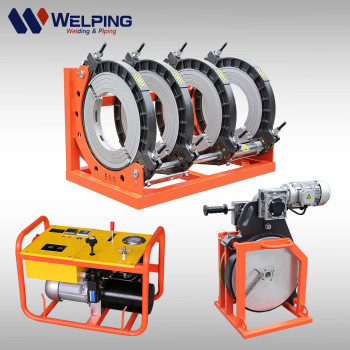

WP500B Hydraulic Butt Fusion Machine for 250–500 mm HDPE Pipe

group name: B Series Butt Fusion Machines

Min Order: 1 piece

brand name: Fusion Equipment and Plumbing Tool｜WELPING

model: WP500B

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union

update time: Wed, 26 Aug 2026 05:51:32 GMT

contact supplier

Paramtents

Working Range 250–500 mm
Pipe Material PE / HDPE
Operation Type Hydraulic
Power Supply 380V / 415V Optional
Applicable Standard ISO 21307 / DVS 2207
Certificate CE

Packging & Delivery

Min Order1 piece

Briefing

1.Heavy-Duty 4-Clamp Frame — Stable pipe alignment
2.Gear-Driven Facer — Smooth and consistent facing
3.Hydraulic Control — Precise fusion pressure adjustment
4.Durable Heating Plate — Stable and even heating

Detailed

Hydraulic Butt Fusion Machine for 250MM to 500MM HDPE Pipes

Welping WP160A hydraulic butt fusion machine

PRODUCT OVERVIEW

_DETAILS

The WP500B is a versatile machine capable of butt fusing pipe and fittings with a variety of pressure ratings. With its small footprint and light weight, it can be carried from joint to joint yet has the same rugged durability and long-lasting performance expected of any Welping butt fusion machine.

The WP500B hydraulic butt fusion machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.

The Butt Fusion Machine is designed to butt fuse pipe sizes 250mm to 500mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.

FEATURES

※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin

STANDARD ACCESSORIES
Main Frame	1 Set
Heating Plate	1 Set
Trimmer	1 Set
Reducers	1 Set
Tool Box	1 Set

PRODUCT VIDEO

PARAMETER

Welping WP160C 160mm butt fusion machine

Mode	WP500B
Suitable materials	PE,PP, PB. PVDF
Range	250-280-315-355-400-450-500mm
Power supply	380V/50HZ, 3PH
Total power	8.7 KW
Heating plate	6.5 KW
Planing tool	1.1 KW
Hydraulic Unit	1.1 KW
Max Temperature of Heating plate	270℃
Temp.Deviation in Surface	±7ºC
Total Weight	405 KG
Net weight	375 KG
Packing Size( for frame )	1257988cm
Packing Size ( for heater, trimmer )	8860108cm
Packing Size ( for Hydraulic )	67.55373cm

PRODUCT DETAILS MAP

Basic Frame

· 4 Jaw Clamps to ensure precise alignment

· Italy DNP quick coupler · Chromated hydraulic cylinder made of 1045(ASTM)/S45)(JIS)/C45(DIN) steel

· Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel · Steel plate cutting clamp with sandblasting &spraying treatment · Base made of Q235 steel with spraying treatment

Hydraulic Power Unit

· Standard equipping pressure more stable

· Electricity leakage protection switch

· 380V asynchronous motor

_{Planning tool}

· HSS blade with double edge

· Casting aluminum trimmer plate, durable and anti-corrosion

· Casting aluminum frame of motor with good heat dissipation performance

· Motor with pure copper wiring

_{Heating Plate}

· Bakelite handle with high insulating property and thermal insulation · Thermocouple temperature sensor · Heating element · Teflon Coating imported from Daikin in Japan · Aviation plug

clamp inserts

250-280-315-355-400-450-500mm reducers
