Manual HDPE Pipe Jointing Machine for 63MM to 200MM Pipes

Manual HDPE Pipe Jointing Machine for 63MM to 200MM Pipes
Manual HDPE Pipe Jointing Machine for 63MM to 200MM PipesManual HDPE Pipe Jointing Machine for 63MM to 200MM PipesManual HDPE Pipe Jointing Machine for 63MM to 200MM PipesManual HDPE Pipe Jointing Machine for 63MM to 200MM PipesManual HDPE Pipe Jointing Machine for 63MM to 200MM Pipes
group name
Manual Butt Fusion Machines
Min Order
1 piece
brand name
Fusion Equipment and Plumbing Tool|WELPING
model
WP160D
Nearest port for product export
Shanghai, Ningbo
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
Acceptable payment methods
T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
update time
Wed, 13 Nov 2024 15:19:38 GMT

Paramtents

  • Lead Time 7-15 days once order confirmed

  • Terms of Payment T/T, Western Union, Paypal,X Transfer

  • FOB Port Shanghai, Ningbo

  • Certificate CE

  • MOQ 1 Set

  • Business type Plastic pipe welding machines manufacturer

Packging & Delivery

  • 67cm x 41cm x 50cm
  • Min Order1 piece

Briefing

Rugged and reliable, the 63mm to 200mm manual HDPE pipe jointing Machines are lightweight and require only one operator

Detailed

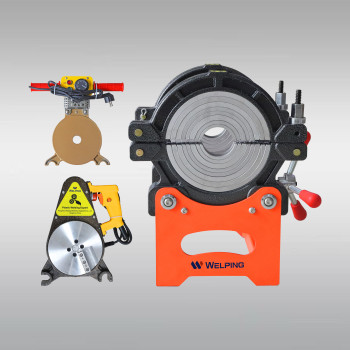

Manual HDPE Pipe Jointing Machine for 63MM to 200MM Pipes
Welping WP160D Manul pipe jointing machine
DETAILS
Manual HDPE Pipe Jointing Machine provides standard welding range of 63mm to 200mm, with unique gear transmission structure. mainly consists of 2 major parts: Carriage (also called frame or base), planing tool (also called trimmer or facer) and heater. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating. It's an effective, trouble free connecting for PE, PP, PVDF pipes.

FEATURES
※ Robust structure of carriage part with streamline outlook ※ Swivel handle with gear transmission of extremely smooth operating structure ※ Durable copper wiring motor, HSS blade, PTFE coating from Dupont or Daikin
STANDARD ACCESSORIES
Main Frame
1 Set
Heating Plate
1 Set
Trimmer
1 Set
Reducers
1 Set
Tool Box
1 Set
160mm manual butt fusion machine
160mm butt welding machine
160mm pipe jointing machine
160mm HDPE pipe welding machine
 PARAMETER
Welping WP160C 160mm butt fusion machine
Mode
WP200D2
Suitable materials
 PE,PP, PB. PVDF
Range
63-75-90-110-125-140-160-180-200mm
Power supply
 110V/220V
Frequency
50HZ
Total power
2.8 KW
Heating plate
1.8 KW
Planing tool
 1.0 KW
Max.Temperature of heating plate
270ºC
Temp.Deviation in Surface
 ±5ºC
Total Weight
---kg
Net weight
---kg
Packing Size
--**--*--cm
 PRODUCT DETAILS MAP
160mm butt fusion machien frame
Basic Frame
· Complete welded frame structure, steady and robust
· Hand-wheel driving, simple and convenient
· Chromated integral shaft made of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting & Spraying treatment
Planning tool
· HSS blade with double edge
· Casting aluminum trimmer plate, durable and anti-corrosion
· Gear transmission instead of chain
· Motor with pure copper wiring
planning tool for butt fusion machine
heating plate of butt fusion machine
Heating Plate
· Teflon Coating from Japan · Thermocouple sensor · Bakelite handle
Reducers
63-75-90-110-125-140-160-180-200mm reducers
reducers of butt fusion machine
DOWNLOAD
Welping E-Catalog of Butt Fusion Machine
Breakdown Part List of Manual Butt Fusion Machine
Operational Manual of Manual Butt Fusion Machine
Warranty Certificate of Butt Fusion Machine
