Compact Hydraulic Roll Groover for Steel Pipe SCH10/SCH40 2"-8 "(RG-3)
- group name
- Electric Hydraulic Roll Groover
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- RG-3
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 16:32:52 GMT
Paramtents
Grooving Capacity 2"-8"
Max Wall Thickness 6mm
Power Supply 800W
Output Speed 30RPM
Packging & Delivery
-
Min Order1 piece
Briefing
roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
Detailed

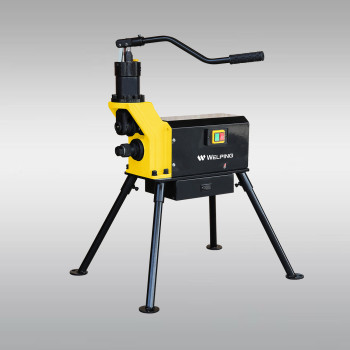

2"-8" light electric hydraulic groove rolling machine
The RG-3 electric hydraulic grooving machine is suitable for rolling grooves on 2"-8" (DN50~DN200) SCH10/SCH40 steel pipes and stainless steel .
Suitable for a variety of daily tasks involving fire protection pipes, this rolling groover is an integrated tool that includes a motor, hydraulic feed pump, foot switch and pipe rack.
The motor's built-in high-performance gear reduction system allows for a compact design and reduced noise levels.
The unique combination of hydraulic feed pump and trough depth locking knob guarantees a quality trough and optimal efficiency.
scope
|
model
|
RG-3
|
|
Applicable materials
|
Carbon steel, stainless steel
|
capacity |
Suitable for 2"-4" steel pipe SCH10/SCH40 |
Suitable for 5"-8" steel pipe SCH10/SCH20 | |
|
power supply
|
220V/110V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | 6mm |
Motor Power | 800W |
Output speed | 30 rpm |
Packaging gross weight | 47kg |
Package Size | 56*26*65cm |
Ordering Information
|
catalog number
|
stage
|
strength
|
Voltage frequency
|
|
900030
|
single
|
800W
|
220V, 50/60HZ
|
|
900031
|
single
|
800W
|
110V, 50/60HZ
|
Standard Parts
|
Item Number
|
describe
|
net weight
|
|
|
911074
|
Driving roller 2"-6" (φ60~φ168)
|
1.30kg
|
|
|
911075
|
Drive roller 8" (219)
|
1.40 kg
|
|
912018 | Grooved roller 2"-6"(φ60-φ168) | 0.45kg | |
912032 | Grooved roller 8"(φ219) | 0.45kg | |
998028 | 2"-8" pipe rack | 2.20kg | |
Optional accessories
|
Item Number
|
describe
|
net weight
|
|
998026 | Foot switch | 1.50kg | |
Product details picture
Pipe rack
Suitable for 1"-12" steel pipe
drive roller
A set of 2"-6" (φ60~φ168) ;
Set of 8 " (φ219) ;
Troughed roller
A set of 2"-6" (φ60~φ168) ;
Set of 8 " (φ219) ;
Foot switch
