Manual Roll Groover for Steel Pipe SCH10/SCH40 1"-6 "(RG-2M)
- group name
- Manual Hydraulic Roll Groover
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- RG-2M
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 19:37:19 GMT
Paramtents
Grooving Capacity 1"-6"
Max Wall Thickness 6mm
Operation Radius 210mm/ 8 ¼"
Gross weight 15kg
Packging & Delivery
-
Min Order1 piece
Briefing
roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
Detailed

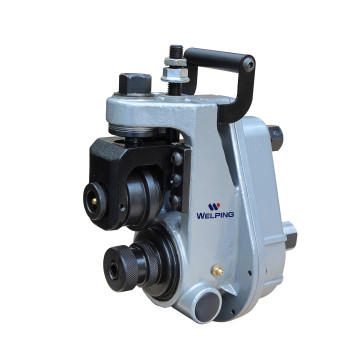

1"-6" Heavy Duty manual Roll Groover
Model RG-2M combination Roll Groove is designed TWO TOOLS IN ONE.
With its compact and portable design, this roll grooving machine is perfect for performing medium volume grooving tasks in tight spaces and on job sites
Chuck your workpiece into the 300 threading machine's power drive or horizontal threading machine, or use a manual roll groove to create threads in place without the need for a power supply
Heavy duty design for fire-fighting pipelines size range 1"~6" (DN25~DN168),SCH10 to SCH40).
Groove depth lock net ensures high quality grooves and high grooving efficiency.
Quick and easy swap shafts in 30 seconds.
PARAMETER
|
Mode
|
RG-2M
|
|
Suitable materials
|
Carbon Steel,Stainless Steel
|
Capacity |
for 1"-4" steel pipe SCH10/SCH40 for 5"-6" steel pipe SCH10/SCH20 |
Max wall thickness | 6mm |
Operation Radius | 210mm/ 8 ¼” |
Packing gross weight | 15kgs |
Packing size | 50*20*53cm |
ORDERING INFORMATION
|
Catalog Number
|
Description
|
Net Weight
|
Packing Size
|
|
900001
|
1"-6" Manual Roll Groover
|
12.5kg
|
50*22*53cm
|
STANDARD PARTS
|
Item Number
|
Description
|
Net weight
|
|
|
911071
|
Drive roller 1 ¼"- 6" (φ42~φ48)
|
0.70kg
|
|
|
912016
|
Groove roller 1"-6"(φ33~φ168)
|
0.30kg
|
|
998036 | Ratchet socket | 1.50kg | |
998035 | Tool bag | 1.50kg | |
OPTIONAL PARTS
|
Item Number
|
Description
|
Net weight
|
|
911011 | Drive roller 1"(φ33) | 1.50kg | |
911016 | Support arms (*2) for 300 power drive | 1.40kg | |
911015 | Drive bar adaptor | 2.50kg | |
998034 | HDPE tool box | 2.70kg | |
98114 | Bracket set for horizontal threading machine | 1.00kg | |
PRODUCT DETAILS MAP
Drive Roller
one set 1¼"- 6" (φ42~φ48);
Groove roller
one set 1"- 6" (φ33~φ48);
Tool Bag
Ratchet with socket
Drive Bar Adapter
Support Arm
2 pcs for 300 threading machine
Bracket set for horizontal threading machine
HDPE Tool Case
2 pcs for 300 threading machine
