Electric Roll Grooving Machine With Fold Trolly for Steel Pipe SCH10/SCH40 1"-12" (RG-5A)
- group name
- Electric Hydraulic Roll Groover
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- RG-5A
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 19:55:06 GMT
Paramtents
Grooving Capacity 1"-12"
Max Wall Thickness 8mm
Power Supply 1100W
Output Speed 23RPM
Packging & Delivery
-
Min Order1 piece
Briefing
12 inch roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
Detailed

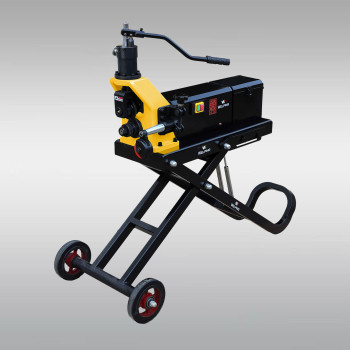

1"-12" light electric hydraulic pipe groove machine
The RG-5A electric hydraulic grooving machine is used to roll grooves on 1"-12" (DN33~DN300) SCH10/SCH20, 1"-8" (DN25~DN200) SCH10/SCH40 steel pipes and stainless steel.
Suitable for a variety of daily tasks involving fire protection pipes, this rolling groover is an integrated tool that includes a motor, hydraulic feed pump, foot switch and pipe rack.
The motor's built-in high-performance gear reduction system allows for a compact design and reduced noise levels.
The unique combination of a hydraulic feed pump and trough depth locking knob guarantees a quality trough and optimal efficiency.
scope
|
model
|
RG-5A
|
|
Applicable materials
|
Carbon steel, stainless steel
|
|
capacity
|
Suitable for 1"-8" steel pipe SCH10/SCH40
|
Suitable for 10"-12" steel pipe SCH10/SCH20 | |
|
power supply
|
220V/110V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | 8mm |
Motor Power | 1100W |
Output speed | 23 rpm |
Packaging gross weight | 95kg |
Package Size | 75*40*77cm |
Ordering Information
|
catalog number
|
stage
|
strength
|
Voltage frequency
|
|
900050
|
single
|
1100W
|
220V, 50/60HZ
|
|
900051
|
single
|
1100W
|
110V, 50/60HZ
|
Standard Parts
|
Item Number
|
describe
|
net weight
|
|
|
911106
|
Drive roller 1"- 1 ½" (φ33~φ48)
|
1.15kg
|
|
|
911107
|
Driving roller 2"-3"(φ60~φ89)
|
1.15kg
|
|
|
911108
|
Drive roller 3 ½"~6" (φ101~φ168)
|
1.70kg
|
|
911019 | Driving roller 8"-12" (φ219~φ325) | 1.70kg | |
912041 | Grooved roller 1"- 1 ½" (φ33~φ48) | 0.90kg | |
912042 | Grooved roller 2"-6"(φ60-φ168) | 0.80kg | |
912043 | Grooved roller 8"-12" (φ219~φ325) | 0.70kg | |
998078 | 1"-12" pipe rack | 6.90kg | |
998026 | Foot switch | 1.50kg | |
Product details picture
Pipe rack
Suitable for 1"-12" steel pipe
drive roller
Set 1"- 1 ½" (φ33~φ48)
A set of 2"-3"(φ60~φ89)
Set of 3 ½"-6" (φ101~φ168)
A set of 8"-12" (φ219~φ325)
Troughed roller
A set of 1"- 1 ½" (φ33~φ48) ;
A set of 2"-6" (φ60~φ168);
8"-12" (φ219~φ325) set;
Foot switch
Foldable Trolly
Tolly with two wheels. easy to transport it
