Heavy duty Electric Hydraulic Roll Groover for SS Pipe SCH10/SCH40 1"-12"(RG-2S)
- group name
- Electric Hydraulic Roll Groover
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- RG-2S
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 20:06:24 GMT
Paramtents
Grooving Capacity 1"-12"
Max Wall Thickness 10mm
Power Supply 1100W
Output Speed 23RPM
Packging & Delivery
-
Min Order1 piece
Briefing
roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
Detailed

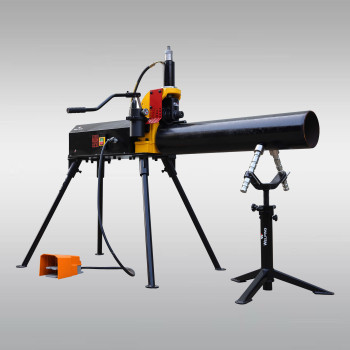

1"-12" Heavy Duty Electric Hydraulic Roll Groover Machine
RG-2S electric hydraulic groove rolling machine is used to roll grooves on steel pipes and stainless steel. From 2"-12" (DN50~DN300) SCH10 to SCH40.
This rolling groover is ideal for use in the workshop and on the job site. It comes with a powerful motor, hydraulic feed pump, convenient foot switch, and sturdy tube holder, making it a comprehensive multi-purpose tool for large-scale manufacturing.
Our innovative split hydraulic system is designed to prevent tank leaks and extend the overall life of the machine. Additionally, our groove depth locking knobs ensure the highest quality grooves and maximum efficiency.
scope
|
model
|
RG-2S
|
|
Applicable materials
|
Carbon steel, stainless steel
|
capacity |
Suitable for 1"-12" steel pipe SCH10/SCH40 |
|
power supply
|
220V/110V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | 10mm |
Motor Power | 1100W |
Output speed | 23 rpm |
Packaging gross weight | 130kg |
Package Size | 82*47*88cm |
Ordering Information
|
catalog number
|
stage
|
strength
|
Voltage frequency
|
|
900020
|
single
|
1100W
|
220V, 50/60HZ
|
|
900021
|
single
|
1100W
|
110V, 50/60HZ
|
Standard Parts
Product details picture
|
Item Number
|
description
|
net weight
|
|
911172 | Driving roller 1"-1 1/2"(φ33~φ48) | 1.13kg | |
|
911022
|
Driving roller 2"-3"(φ60~φ89)
|
1.30kg
|
|
|
911021
|
Drive roller 3 ½"~6" (φ101~φ168)
|
1.30kg
|
|
911020 | Driving roller 8"-12" (φ219~φ325) | 1.40 kg | |
912066 | Groove roller 2"- 3" (φ60~φ89) | 0.45kg | |
912010 | Groove roller 1"-1 1/2"(φ33~φ48) | 0.45kg | |
912009 | Groove roller 3 ½"~6" (φ101~φ168) | 0.45kg | |
912008 | Groove roller 8"-12" (φ219~φ325) | 0.45kg | |
998078 | 1"-12" pipe rack | 6.90kg | |
998026 | Foot switch | 1.50kg | |
Pipe rack
Suitable for 1"-12" steel pipe
drive roller
A set of1"-1 1/2"(φ33~φ48)
A set of 2"-3"(φ60~φ89)
A set of 3 ½"-6" (φ101~φ168)
A set of 8"-12" (φ219~φ325)
Troughed roller
A set of1"-1 1/2"(φ33~φ48)
A set of 2"-3"(φ60~φ89)
A set of 3 ½"-6" (φ101~φ168)
A set of 8"-12" (φ219~φ325)
Foot switch
