Combination Roll Groover Compact Designe for Steel Pipe SCH10/SCH40 1 1/4"-6 " (RG-3M)
- group name
- Manual Hydraulic Roll Groover
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- RG-3M
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Sun, 14 Sep 2025 18:29:01 GMT
Paramtents
Grooving Capacity 1 1/4"-6"
Max Wall Thickness 6mm
Operation Radius 210mm/ 8 ¼"
Gross weight 12kg
Packging & Delivery
-
Min Order1 piece
Briefing
roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
Detailed

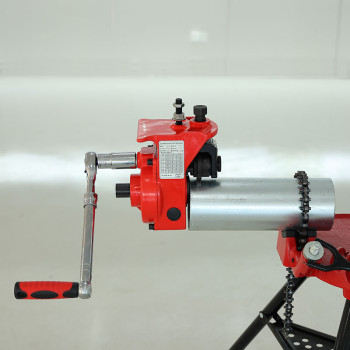

1 1/4"-6" Economic Manual Roll Groover
Model RG-3M combination Roll Groove is designed TWO TOOLS IN ONE.
With its compact and portable design, this roll grooving machine is perfect for performing medium-volume grooving tasks in tight spaces and on job sites
Chuck your workpiece into the 300 threading machine's power drive or horizontal threading machine, or use a manual roll groove to create threads in place without the need for a power supply
Heavy duty design for fire-fighting pipelines size range 1 1/4"~6" (DN32~DN150),SCH10 to SCH40).
Groove depth lock net ensures high-quality grooves and high grooving efficiency.
Quick and easy swap shafts in 30 seconds.
PARAMETER
|
Mode
|
RG-3M
|
|
Suitable materials
|
Carbon Steel,Stainless Steel
|
Capacity |
for 1 1/4"-4" steel pipe SCH10/SCH40 for 5"-6" steel pipe SCH10/SCH20 |
Max wall thickness | 6mm |
Operation Radius | 210mm/ 8 ¼” |
Packing gross weight | 12kgs |
Packing size | 49*22*40cm |
ORDERING INFORMATION
|
Catalog Number
|
Description
|
Net Weight
|
Packing Size
|
|
900001
|
1 1/4"-6" roll grooving assembly
|
12.0kg
|
49*22*40cm
|
STANDARD PARTS
|
Item Number
|
Description
|
Net weight
|
|
|
911010
|
Drive roller 1 ¼"- 6" (φ42~φ168)
|
0.70kg
|
|
|
912016
|
Groove roller 1"-6"(φ33~φ168)
|
0.30kg
|
|
998036 | Rachet with socket | 1.65kg | |
OPTIONAL PARTS
|
Item Number
|
Description
|
Net weight
|
|
911016 | Support arms (2pcs) for 300 | 1.40kg | |
911015 | Drive bar adaptor | 1.60kg | |
998034 | HDPE tool case | 2.70kg | |
PRODUCT DETAILS MAP
Drive Roller
one set 1¼"- 6" (φ42~φ48);
Groove roller
one set 1"- 6" (φ33~φ48);
Drive Bar Adapter
Support Arm
2 pcs for 300 threading machine
HDPE Tool Case
Ratchet with socket
Tool Bag for Option
