2inch to 12inch Steel Pipes for Max 10mm Automatic Roll Grooving Machine Roll Groover
- group name
- Electric Hydraulic Roll Groover
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- AG-2X
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Tue, 01 Jul 2025 23:15:45 GMT
Paramtents
Grooving Capacity 2"-12" ,2"~16" is optional
Max Wall Thickness 10mm
Power Supply 750W-3PH
Output Speed 23RPM
Voltage 380V
Packging & Delivery
- 142cm x93cm x162cm
-
Min Order1 piece
Briefing
The semi-automatic steel pipe grooving machine is designed for efficiently creating grooves on steel pipes, primarily used in piping systems such as fire protection, plumbing, and HVAC.
Detailed

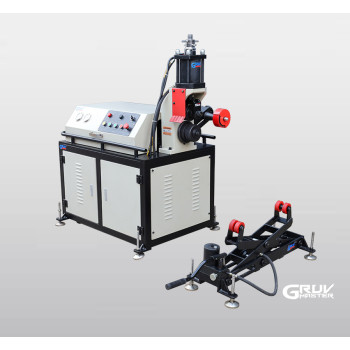

2"-12" Automatic hydraulic pipe groove machine
Below are its main functions and features:
Key Functions:
1. Groove Formation: Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.
2. Compatibility: Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.
3. Semi-Automatic Operation: Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.
Features:
1. Robust Construction: Built with durable materials to withstand high-intensity operations and ensure a long service life.
2. High Efficiency: Semi-automatic operation speeds up the grooving process while maintaining accuracy.
3. User-Friendly Design: Simple controls and an ergonomic structure make the machine easy to operate, even for users with minimal training.
4. Adjustable Settings: Equipped with adjustable rollers and blades to accommodate different pipe specifications.
5. Compact and Portable: The machine's compact design ensures easy transport and storage, ideal for on-site applications.
This machine is a cost-effective solution for professionals seeking reliable and efficient grooving for steel pipe installations.
Standard Parts of AG-2X Roll Groover
|
model
|
AG-2X
|
|
Applicable materials
|
Carbon steel, stainless steel
|
|
capacity
|
2 "~12"(DN50~DN300,Φ60~Φ325)
|
(Optional) 2"~16"(DN50~DN400,Φ60~Φ426 | |
|
power supply
|
380V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | 10mm |
Motor Power | 750W |
Output speed | 23 rpm |
Packaging gross weight | 520kg |
Package Size | 142*92*163cm |
Ordering Information
|
catalog number
|
stage
|
strength
|
Voltage frequency
|
|
999003
|
3PH
|
750W
|
380V, 50/60HZ
|
Standard Parts
|
Item Number
|
describe
|
net weight
|
|
|
911022
|
Drive roller 2"~3" (Φ60~Φ89)
|
1.3kg
|
|
|
911021
|
Drive roller 3½ "~6" (Φ101~Φ168)
|
1.3kg
|
|
|
911020
|
Drive roller 8"-12" (Φ219~Φ325)
|
1.4kg
|
|
912010 | Groove roller 2"~3" (Φ60~Φ89) | 0.45kg | |
912009 | Groove roller 3½ "~6" (Φ101~Φ168) | 0.45kg | |
912008 | Groove roller 8"-12" (Φ219~Φ325) | 0.45kg | |
998164 | Pipe stand for 2"~12" (Φ60~Φ325) | 12.0kg | |
Optional Parts
| Item Number | Describe | 1.6kg |
| 911170 | Drive roller 14"~16" (Φ355~Φ426) | 1.6kg |
912052 | Drive roller 14"~16" (Φ355~Φ426) | 1.6kg |
Product details picture
Groove Formation
Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.
Compatibility
Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.
Support color customization
Balanced structure withstands tough jobs
Semi-Automatic Operation
Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.
Adjustable Settings
Equipped with adjustable roller sets to accommodate different pipe specifications.
User friendly
Simple push-button operations ensures easy and efficient grooving operation experience.
Semi-Automatically
The fully-motorized, semi-automatic, electrohydraulic tool comes complete with safety guards
Pipe Stand
Pipe stand for 2-12 inch pipes
Groove ruler
The ideal tool for quick and reliable groove inspection, supports brand customization
Pipe Roll Grooving Machine Comparasion
