RG-7X 2"-8" Roll Groover Machine for GI Pipes Sch40
- group name
- Electric Hydraulic Roll Groover
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- RG-7X
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Tue, 01 Jul 2025 22:39:49 GMT
Paramtents
Grooving Capacity 2"-8"
Max Wall Thickness 8mm
Power Supply 800W
Output Speed 30rpm
Gross Weight 82kgs
HS Code 8462490000
Warranty 1 Year
Packging & Delivery
-
Min Order1 piece
Briefing
roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
Detailed

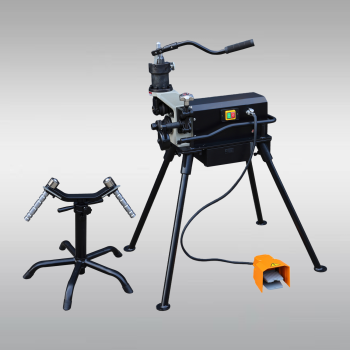

2"-8" Efficient electric hydraulic roll grooving machine
The RG-7X electric hydraulic grooving machine is used to roll grooves on pipes with diameters ranging from 2" to 8" (DN25 to DN200) and SCH10/SCH40 steel pipes and stainless steel pipes.
Suitable for a variety of daily tasks involving fire protection pipes, this rolling groover is an integrated tool that includes a motor, hydraulic feed pump, foot switch, and pipe rack.
The motor's built-in high-performance gear reduction system allows for a compact design and reduced noise levels.
The unique combination of a hydraulic feed pump and a trough depth locking knob ensures a high-quality trough and optimal efficiency.
scope
|
model
|
RG-7X
|
|
Applicable materials
|
Carbon steel, Stainless steel
|
capacity |
Suitable for 2"-8" steel pipe SCH10/SCH40 |
|
power supply
|
220V/110V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | 8mm |
Motor Power | 800W |
Output speed | 30rpm |
Packaging gross weight | 82kg |
Package Size | 68*40*72cm |
Ordering Information
|
catalog number
|
stage
|
strength
|
Voltage frequency
|
|
900030
|
single
|
800W
|
220V, 50/60HZ
|
|
900031
|
single
|
800W
|
110V, 50/60HZ
|
Standard Parts
|
Item Number
|
describe
|
net weight
|
|
|
911226
|
Drive roller 2"- 2½" (φ60~φ73)
|
0.4kg
|
|
|
911227
|
Driving roller 3"-6" (φ89~φ168)
|
0.8kg
|
|
|
911228
|
Drive roller 8" (219)
|
1.0 kg
|
|
912094 | Grooved roller 2"-6"(φ60-φ168) | 0.5kg | |
912095 | Grooved roller 8"(φ219) | 0.58kg | |
998169 | Pipe stabilizer | 2.0kg | |
998028 | Pipe stand | 6.90kg | |
Optional accessories
|
Item Number
|
describe
|
net weight
|
|
998026 | Foot switch | 1.50kg | |
Product details picture
Pipe stand
Suitable for 1"-12" steel pipe
drive roller
A set of 2"- 2½" (φ60~φ73) ;
A set of 2"-6" (φ89~φ168) ;
A set of 8" (φ219) ;
Troughed roller
A set of 2"-6" (φ60~φ168);
A set of 8" (φ219);
Foot switch (optional part)
