2inch to 12inch Steel Pipes for 6-35mm electric Hydraulic Groove Cutting Machine
- group name
- Electric Hydraulic Roll Groover
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- CG-4X
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Tue, 01 Jul 2025 22:14:06 GMT
Paramtents
Grooving Capacity 8"-32"
Max Wall Thickness 6-35mm
Power Supply 2200W / 3PH
Output Speed 19RPM
Voltage 380V
Packging & Delivery
- 120cm x110cm x160cm
-
Min Order1 piece
Briefing
The semi-automatic steel hydraulic electric pipe grooving machine is designed for efficiently creating grooves on steel pipes, primarily used in piping systems such as fire protection, plumbing, and HVAC.
Detailed

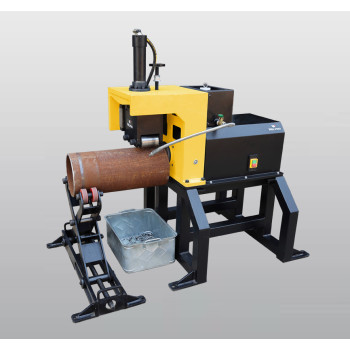

8"-32" Electric hydraulic pipe groove machine
Below are its main functions and features:
Key Functions:
1. Groove Formation: Accurately processes grooves on steel pipes to ensure secure connections with coupling systems.
2. Compatibility: Handles various pipe diameters and wall thicknesses, making it suitable for diverse project requirements.
3. Semi-Automatic Operation: Combines manual control with automated processes to achieve precision and consistency while offering operational flexibility.
Features:
1. Robust Construction: Built with durable materials to withstand high-intensity operations and ensure a long service life.
2. High Efficiency: Semi-automatic operation speeds up the grooving process while maintaining accuracy.
3. User-Friendly Design: Simple controls and an ergonomic structure make the machine easy to operate, even for users with minimal training.
4. Adjustable Settings: Equipped with adjustable rollers and blades to accommodate different pipe specifications.
5. Compact and Portable: The machine's compact design ensures easy transport and storage, ideal for on-site applications.
This machine is a cost-effective solution for professionals seeking reliable and efficient grooving for steel pipe installations.
Standard Parts of CG-4X Roll Groover
|
model
|
CG-4X
|
|
Applicable materials
|
Carbon steel, stainless steel
|
|
capacity
|
8"~32"(DN200~DN800,Φ219~Φ813)
|
|
power supply
|
380V
|
frequency | 50Hz/60Hz |
Maximum wall thickness | 6-35mm |
Motor Power | 2200W |
Output speed | 19rpm |
Packaging gross weight | 485kg |
Package Size | 120*110*160cm |
Drive Unit
|
catalog number
|
stage
|
Power |
Voltage
|
Frequency
|
|
998042
|
3PH
|
2200W |
380V
|
50/60HZ
|
Standard Parts
|
Item Number
|
Describe
|
net weight
|
|
|
922203
|
Drive roller 2"~3" (Φ60~Φ89)
|
5kg
|
|
|
911204
|
Drive roller 3½ "~6" (Φ101~Φ168)
|
6.7kg
|
|
|
912008
|
Groove roller 8"-12" (Φ219~Φ325)
|
13.2kg
|
|
998149 | Cutting tool 2"~3½” (Φ60~Φ101) | 0.2kg | |
998150 | Cutting tool 4"~6" (Φ114~Φ168) | 0.2kg | |
998154 | Groove roller 8"-12" (Φ219~Φ325) | 0.2kg | |
998151 | Cutting tool 10"~20" (Φ273~Φ508) | 0.2kg | |
998152 | Cutting tool 22"-32" (Φ558~Φ813) | 0.2kg | |
Product details
Pipe Roll Grooving Machine Comparasion
download
