High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp250A PRO
- group name
- Hydraulic Butt Fusion Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP250A Pro
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Tue, 01 Jul 2025 17:26:30 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Terms of Payment T/T, Western Union, Paypal,X Transfer
FOB Port Shanghai, Ningbo
Certificate CE
MOQ 1 Set
Business type Plastic pipe welding machines manufacturer
Packging & Delivery
-
Min Order1 piece
Briefing
It is a versatile machine designed for butt fusion of 90mm to 250mm pipe and fittings, with durability and reliability.
Detailed
High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp250A PRO
DETAILS
HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.
The High-End Series WP250A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.
Basic Info
The Butt Fusion Machine is designed to butt fuse pipe sizes 90mm to 250mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
| Model NO. | WP250A Pro | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Resistance Butt Welder | ODM/OEM | Alternative |
| Package | 2 PCS | Hydraulic | Enclosure Housing |
Certificate | CE, SGS | Warranty | 1 Year |
Heating Plate | 2.3kw | Planing Tool | 2.0kw |
Hydraulic Unit | 0.75kw | Color | White |
Transport Package | Plywood Case | Specification | Hydraulic drive |
Trademark | WELPING | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000pieces/Year |
PARAMETER
| Model | WP250A Pro |
| Welding range | 90-110-125-140-160-180-200-225-250 mm |
| Weldable Material | PE(HDPE, MDPE, LDPE), PP, PVDF, MPP |
| Power supply | 220V, 50/60Hz, 1PH |
| Overall Power | 5.05kW |
Heater | 2.3kW |
Trimmer | 2.0kW |
Hydraulic station | 0.75kW |
Pressure range | 0-8Mpa |
Max. temperature | 270ºC |
Heating plate surface temp | 170-250ºC |
Temperature deviation | ±7ºC |
Gross Weight | 151kg |
Total Volume | 0.5cbm |

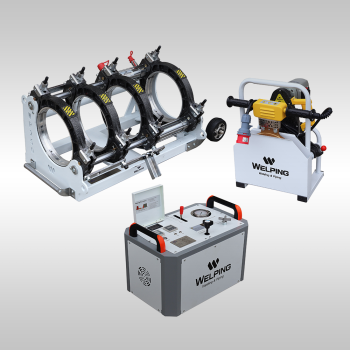

PRODUCT DETAILS MAP
Frame(Carriage)
· Complete steel welded design, with complex reinforced structure, heavy-duty
· Clamping part, inner fine-machined
· Standard equipped with carrying handles and wheels,for easy transportation
· Qualified hydraulic cylinder with quick couplings, for easy installation
Hydraulic station
· Integrated hydraulic and electrical control, for easy operation access
· All-in-one control panel:
hydraulic actuation, pressure setting, timing, electric info display, temperature setting
· Enclosure design, shielding splash and dirt
· Qualified Siemens electrical parts
Heating plate
· Cast aluminum body with built-in heating elements
· Anti-stick PEFT coating from Daikin
· Qualified aviation plug and heavy duty cable ensure operation safety
Planing tool (trimmer)
· Full gear transmission structure,for steady and long-life performance
· Powerful copper-wiring motor
· Durable, double edges HSS blades
Tool holder
· Complete heating plate covers for better protection and heating conservation
· Wider and longer handles for better mobility
