High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp355A PRO
- group name
- Hydraulic Butt Fusion Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP355A Pro
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Sun, 14 Sep 2025 16:26:10 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Terms of Payment T/T, Western Union, Paypal,X Transfer
FOB Port Shanghai, Ningbo
Certificate CE
MOQ 1 Set
Business type Plastic pipe welding machines manufacturer
Packging & Delivery
-
Min Order1 piece
Briefing
It is a versatile machine designed for butt fusion of 90mm to 355mm pipe and fittings, with durability and reliability.
Detailed

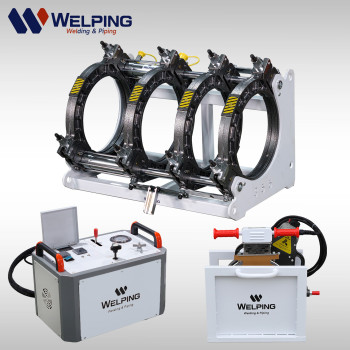

High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp355A PRO
DETAILS
HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.
The High-End Series WP315A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.
Basic Info
The Butt Fusion Machine is designed to butt fuse pipe sizes 90mm to 355mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
| Model NO. | WP355A Pro | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Resistance Butt Welder | ODM/OEM | Available |
| Package | 2PCS | Hydraulic | Enclosure Housing |
Warranty | 1 Year | Color | White |
Transport Package | Plywood Case | Specification | Hydraulic drive |
Trademark | WELPING | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000pieces/Year |
PARAMETER
| Model | WP355A Pro |
| Welding range | 90-110-125-140-160-180-200-225-250-280-315-355mm |
| Weldable Material | HDPE/PP/PVDF |
| Rated Voltage | AC 220V, 50Hz, 1PH |
| Rated Power | 6.3kW |
Heater | 3.55kW |
Trimmer | 2.0kW |
Hydraulic Unit | 0.75kW |
Pressure Range | 0-6.3Mpa |
Packing | Plywood Cases |
Total Volume | 0.85cbm |
Gross Weight | 245kg |
Certificate | ISO/CE/VOC/Calibration |
Warranty | 12 Months |

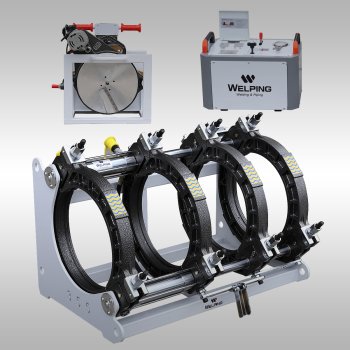

PRODUCT DETAILS MAP
Frame(Carriage)
· Complete steel welded design, with complex reinforced structure, heavy-duty
· Thicker and bigger side plates for tough jobs
· Standard equipped with wear-resistantbushings to effectively prevent wear on the aluminum casting during use
· Qualified hydraulic cylinder with quickcouplings, for long-time steady performance
Hydraulic station
· Integrated hydraulic and electrical control, for easy operation access
· All-in-one control panel:
hydraulic actuation, pressure setting, timing, electric info display, temperature setting
· Enclosure design, shielding splash and dirt
· Qualified Siemens electrical parts
Heating plate
· Cast aluminum body with built-in heating elements
· Anti-stick PEFT coating from Daikin
· Qualified aviation plug and heavy duty cable ensure operation safety
Milling cutter (facer)
· Full gear transmission structure, for steadyand long-life performance
· Thicker cutter disc is built for high strengthand durability, with a precision-ground surface for smooth and accurate contact
· Durable, double edges HSS blades
Tool holder
· The tool holder provides convenient storagefor the facer and heating plate during on-site operations
· Complete heating plate covers for betterprotection and heating conservation
· 2 Wider handles for better mobility
