High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp400A PRO
- group name
- Hydraulic Butt Fusion Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP400A Pro
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Wed, 28 Jan 2026 20:21:17 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Terms of Payment T/T, Western Union, Paypal,X Transfer
FOB Port Shanghai, Ningbo
Certificate CE
MOQ 1 Set
Business type Plastic pipe welding machines manufacturer
Packging & Delivery
-
Min Order1 piece
Briefing
It is a versatile machine designed for butt fusion of 180mm to 500mm pipe and fittings, with durability and reliability.
Detailed
High-End Series Hydraulic HDPE Pipe Fusion Welding Machine Wp400A PRO
DETAILS
HDPE pipe has been used extensively in the piping applications of municipal, industrial, marine, mining, landfill, duct and agricultural industries.
Butt fusion welding is an effective, trouble free connecting method for PE, HDPE pipes. In pressurized piping applications, butt fusion welding machine can provide reliable joints, even as strong as the complete pipe.
The High-End Series WP500A PRO butt welding machine is a mechanical butt fusion welder for joining various types of plastic pipe including HDPE,PP,PB and PVDF.
Basic Info

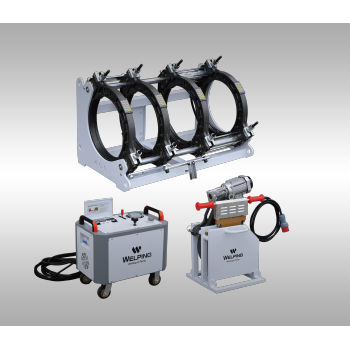

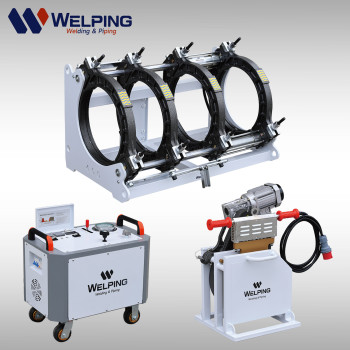

The Butt Fusion Machine is designed to butt fuse pipe sizes 180mm to 500mm. It is easy to operate and incorporates a state-of-the-art heating plate, 4 jaws machine body, electric facer, and storage stand.
| Model NO. | WP400A Pro | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Resistance Butt Welder | ODM/OEM | Available |
| Package | 2PCS | Hydraulic | Enclosure Housing |
Warranty | 1 Year | Color | White |
Transport Package | Plywood Case | Specification | Hydraulic drive |
Trademark | WELPING | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000pieces/Year |
PARAMETER
| Model | WP400A Pro |
| Welding range | 180-200-225-250-280-315-355-400(M) |
| Weldable Material | HDPE/PP/PVDF |
| Rated Voltage | AC 380V, 50Hz, 3PH |
| Total power | 8.7kW |
Heating plate | 6.5kW |
Facer | 1.1 KW |
Hydraulic station | 1.1 KW |
Pressure adjusting range | 0-10 MPa |
Max Temperature | 270ºC |
Certificate | ISO/CE/VOC/Calibration |
Warranty | 12 Months |
PRODUCT DETAILS MAP
Frame(Carriage)
· Complete reinforced welded steel structure, strong, free of distortion
· Aluminum strengthened clamping part
· 4 upper rings are equipped with anti - friction pads to protect the aluminum casting
· Qualified hydraulic cylinder with quick couplings, for easy installation
Hydraulic station
· Integrated hydraulic and electrical control. All - in - one control panel: hydraulic actuation, pressure setting, timing, electric info display, temperature setting
· Enclosure design, shielding splash and dirt and wheels, for easy transportation
· Built with Siemens or other well - known brand electronic components
Heating plate
· Cast aluminum body with built - in heating elements
· Anti - stick PEFT coating from Daikin
· Qualified aviation plug and heavy duty cable ensure operation safety
· Optional FX series heating plate with thicker casting and updated heating elements
Facer (milling cutter)
· Full gear transmission structure, for steady and long - life performance
· Powerful copper - wiring motor
· Durable, double edges HSS blade
· Reinforced milling plate, withstands heavy - duty operation
Data Logger (optional)
· The Data Logger is specifically designed for butt fusion welding machines, ensuring reliable recording and monitoring of welding processes. It accurately sets and captures essential welding parameters, for quality control and compliance purposes
