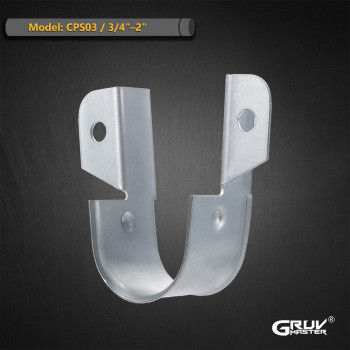

CPS03 Side Mount Pipe Strap 3/4"–2" for CPVC Pipe Support
- group name
- Pipe Straps
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- CPS03
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Mon, 20 Apr 2026 20:08:58 GMT
Paramtents
Material Carbon steel
Size Range 3/4" – 2"
Finish Pre-Galvanized (ASTM A653)
Application Horizontal CPVC Pipe Support
Design Two-Hole 90° Side Mount
Mounting Type Side Mount
Corrosion Galvanized Coating
Function Pipe Support & Positioning
Certification UL Listed / ULC Listed
Packging & Delivery
-
Min Order1 piece
Briefing
90° side mount strap for horizontal CPVC pipes. Pre-galvanized steel, UL/ULC compliant for stable wall installation.
Detailed
Two-Hole Side Mount Strap for CPVC Pipe
(Size Range: 3/4" – 2" | UL / ULC Listed)
Product Overview
The two-hole 90° side mount strap is designed for supporting horizontal CPVC pipes in fire protection and piping systems. It provides stable pipe positioning while allowing controlled movement during operation.
Made from carbon steel with a pre-galvanized finish, it is suitable for installation on structural wood or light steel members. The design ensures reliable support while protecting the pipe surface during long-term use.
Product Specifications
Model: | CPS03 |
| Product Name: | Side Mount Strap |
| Material: | Carbon Steel |
| Finish: | Pre-Galvanized (ASTM A653) |
Size Range: | 3/4" – 2" |
Application: | Horizontal CPVC Pipe Support |
Installation: | Side Mount on Wood or Light Steel Structures |
Design: | Two-Hole 90° Side Mount |
| Edge Type: | Beveled Edge |
Certification: | UL Listed / ULC Listed |
Key Features
Side-Mount Installation Design
Designed for edge mounting, suitable for installation on beams, joists, or structural members.
Controlled Pipe Movement
Allows slight pipe movement to accommodate thermal expansion and system changes.
Pipe Surface Protection
Smooth beveled edges help reduce the risk of damage to CPVC pipe surfaces.
Corrosion-Resistant Finish
Pre-galvanized coating provides reliable protection in indoor environments.
Selection Guide
· Select the strap size according to the pipe outer diameter
· Ensure proper spacing between supports based on pipe type
· Choose installation surface (wood or steel) based on project conditions
· Verify compliance requirements for fire protection systems
Typical Riser Clamp Installation
Standards & Certification
· UL Listed
· ULC Listed
· Complies with ASTM A653 material standard
Technical Data
Dimensions and load capacity vary by pipe size. Refer to the table below for detailed specifications.
FAQ
Q: What pipe types is this strap designed for?
A: Primarily for CPVC pipe, also suitable for other light-duty piping systems.
Q: Where is this strap typically installed?
A: Installed on the side of wood or light steel structures, ideal for edge mounting.
Q: What is the benefit of the 90° side mount design?
A: Allows installation on vertical surfaces, especially where top mounting is not possible.
Q: Does this strap allow pipe movement?
A: Yes, it allows controlled movement to accommodate thermal expansion.
