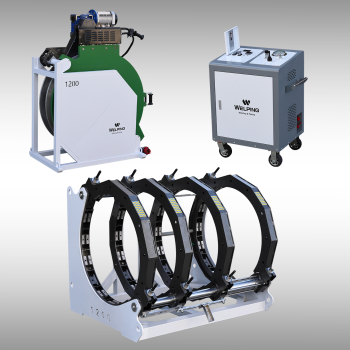

WP1200A Pro Heavy-duty HDPE Butt Fusion Welding Machine
- group name
- Hydraulic Butt Fusion Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP1200A Pro
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Wed, 20 May 2026 06:49:11 GMT
Paramtents
Product Type Hydraulic Butt Fusion Machine
Heating Plate PTFE-coated Thickened Heating Plate
Clamp Inserts Quarter-circle Die-cast Aluminum Inserts
Packging & Delivery
-
Min Order1 piece
Briefing
WP1200A Pro is a heavy-duty hydraulic butt fusion machine for large-diameter HDPE pipe welding, featuring a reinforced frame, enclosed hydraulic unit, high-quality heating plate, reinforced facer, and die-cast aluminum clamp inserts for stable and reliable field operation.
Detailed

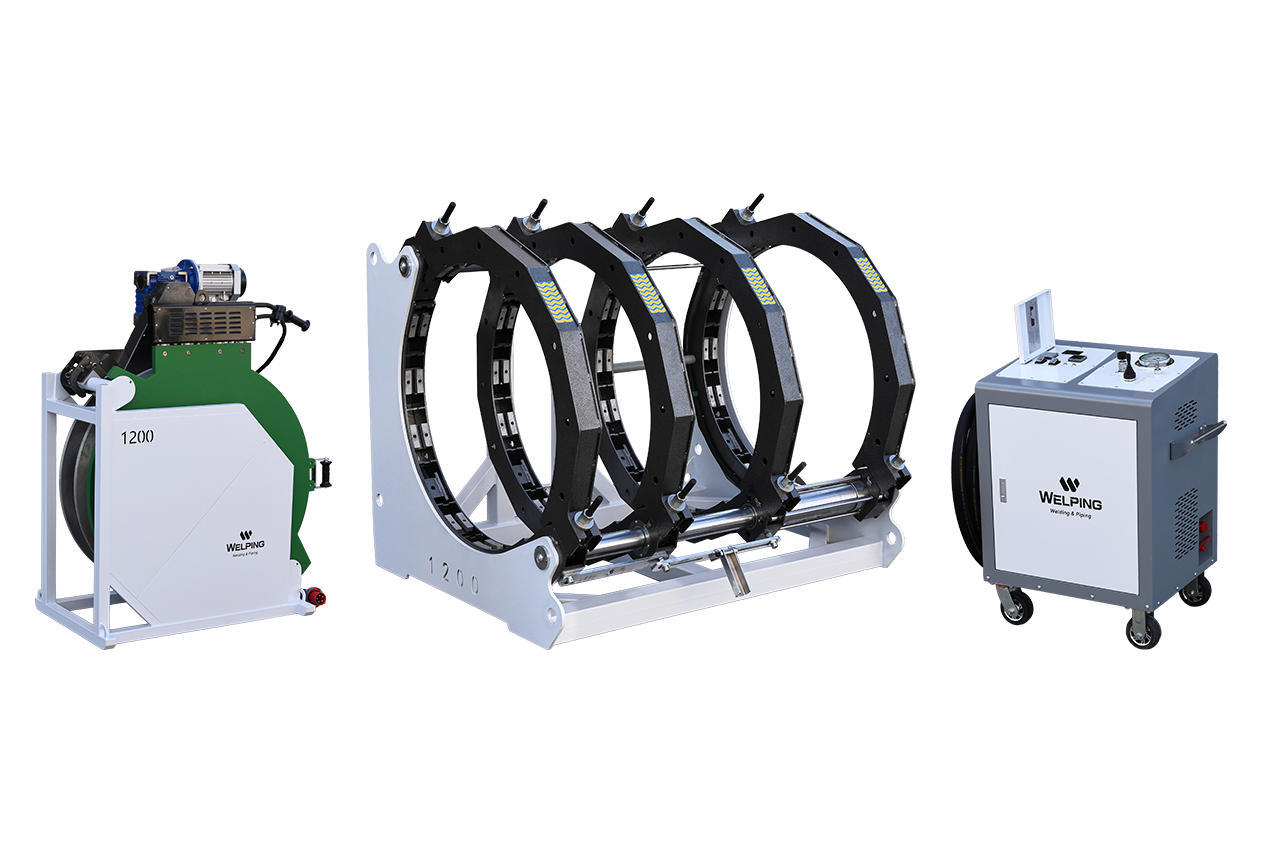

WP1200A Pro HDPE Butt Fusion Machine
Designed for Heavy-duty Butt Fusion of 630–1200 mm HDPE Pipes
Product Overview
WP1200A Pro is designed for professional HDPE pipe butt fusion work where machine strength, clamping stability, and reliable operation are important.
The machine uses a reinforced frame structure with thickened side plates, newly designed clamp rings, an enclosed hydraulic unit, a durable facer, and a high-quality heating plate. These features help support stable pipe alignment, smooth facing, consistent heating, and reliable welding preparation on large-diameter pipe jobs.
| Model. | WP1200A Pro | Control | Hydraulic |
| Frequency Range | Low Frequency | Electric Current | AC |
Type | Resistance Butt Welder | ODM/OEM | Available |
Package | 2PCS | Hydraulic | Enclosure Housing |
Warranty | 1 Year | Color | White |
Transport Package | Plywood Case | Specification | Hydraulic drive |
| Trademark | WELPING | Origin | China |
| HS Code | 8515809090 | Production Capacity | 20000pieces/Year |
Parameter
| Model | WP1200Apro |
| Welding range (mm) | 1000-1200 |
| Standard inserts (mm) | 1000-1100-1200(M) 630-710-800-900(optional) |
| Power supply | 380V/50Hz, 3PH |
| Total power | 30.5 KW |
Heating plate | 22.5 KW |
Facer | 4 KW |
Hydraulic station | 4 KW |
Pressure adjusting range | 0-12 MPa |
Max Temperature | 270ºC |
Temperature Deviation | ±7ºC |
Piston Area | 45.94 CM² |
Key Features

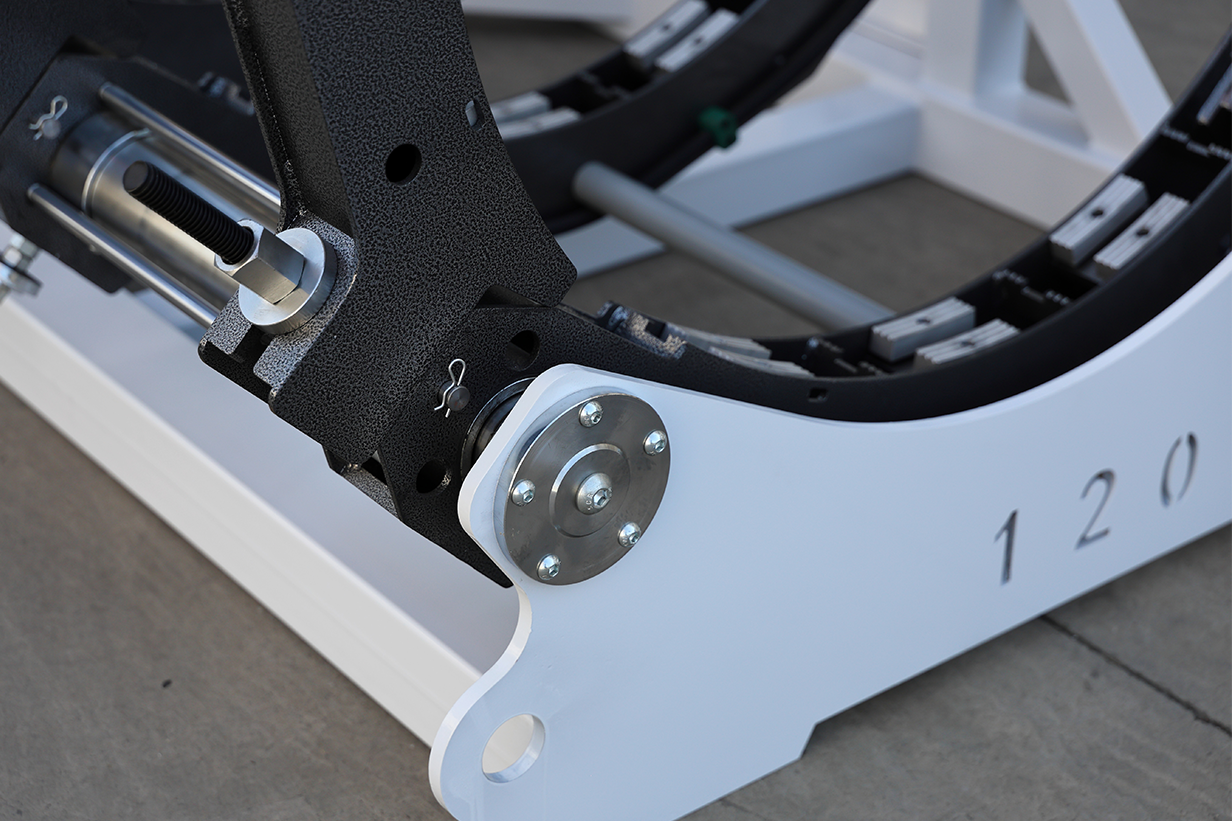

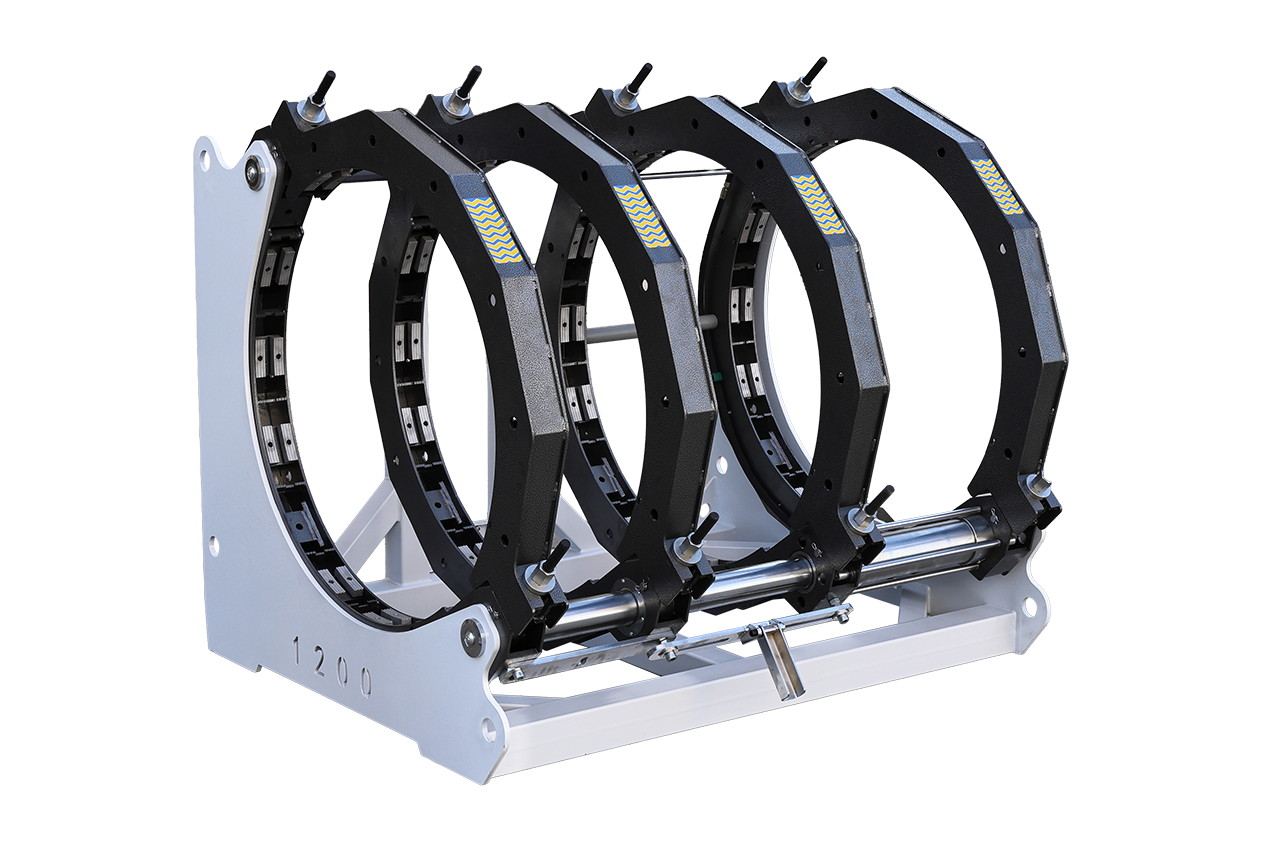

Frame(Carriage)
· Reinforced complex-structure frame, built toesist deformation under heavy loads.Thickened and widened side plates deliverro-level rigidity

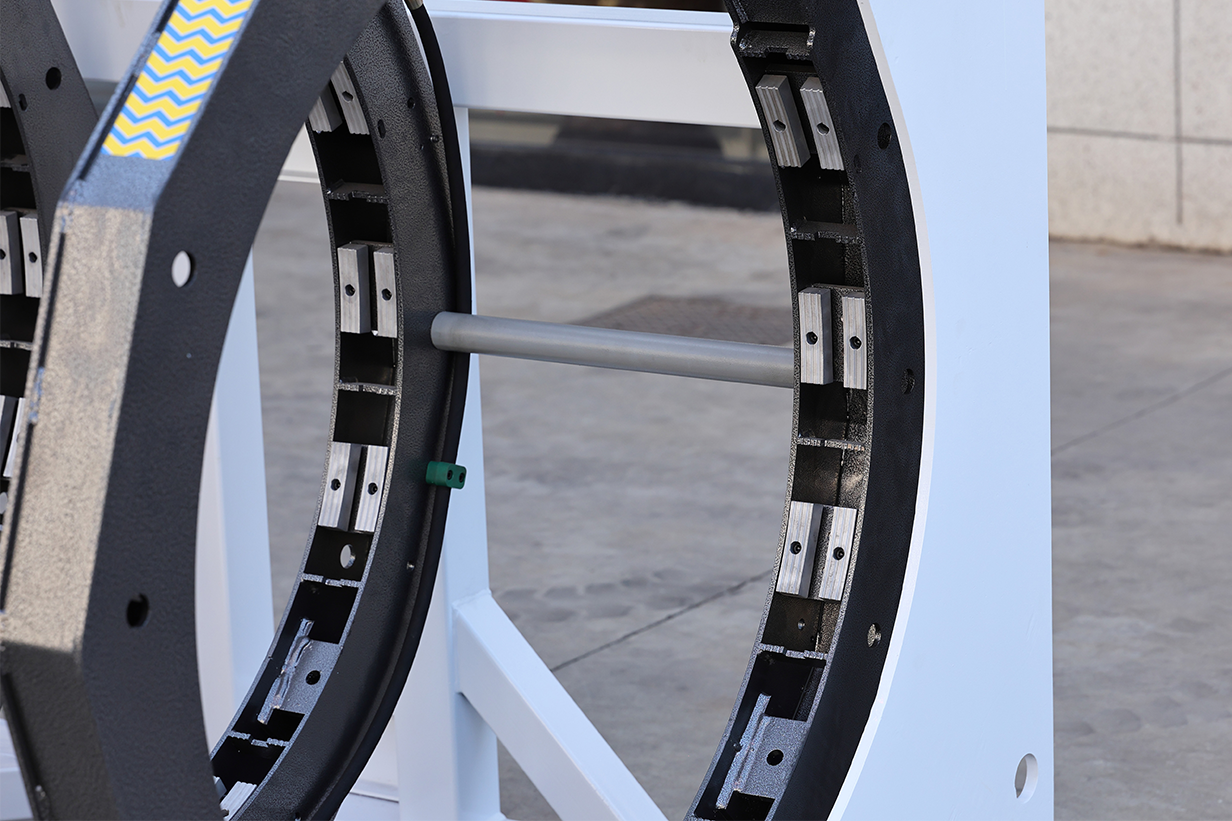

· Newly designed upper and lower clamp rings,with a refined appearance, high structuralstrength, optional internal anti-slip pad blocks

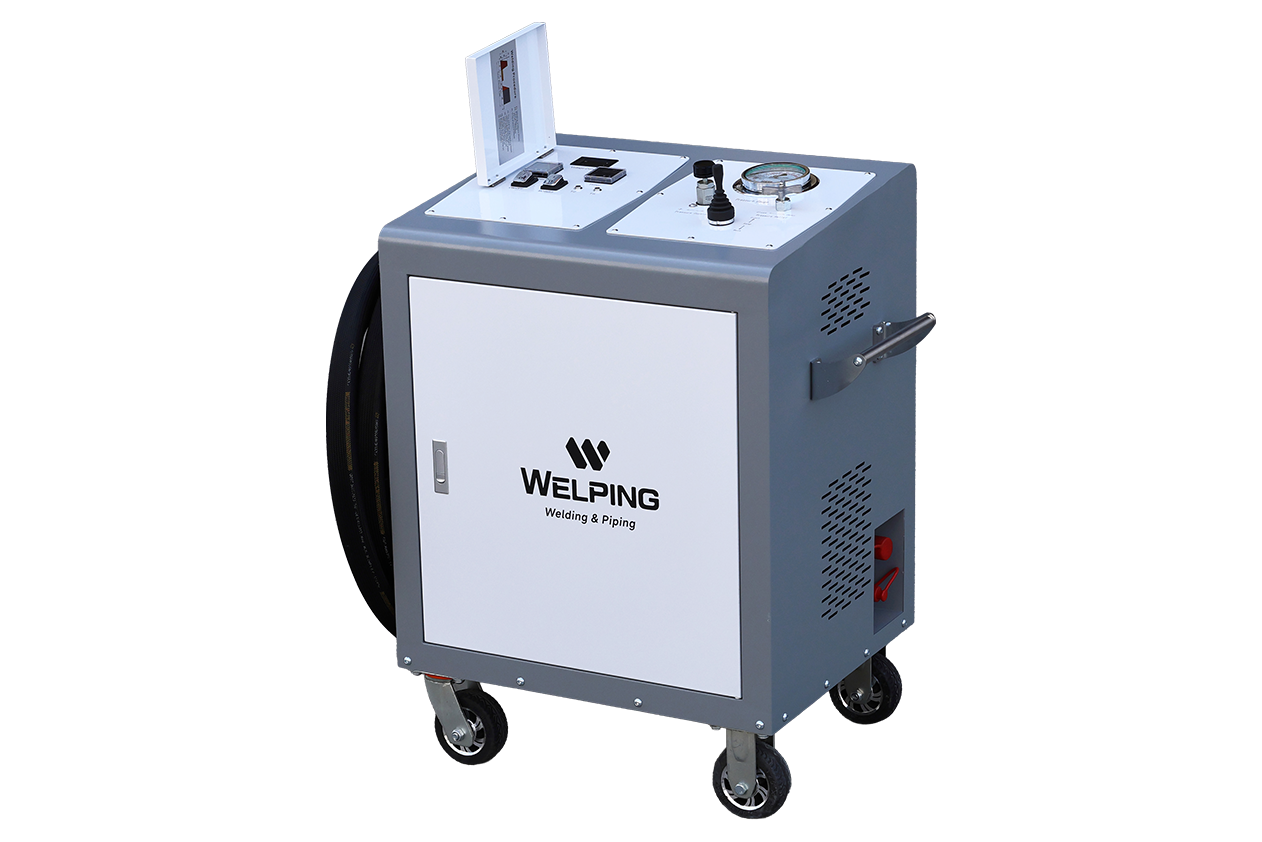

Hydraulic station
· Integrated hydraulic and electrical control.All-in-one control panel:hydraulic actuation, pressure setting, timing,electric info display, temperature setting
· Enclosure design, shielding splash and dirtand wheels, for easy transportation
· Built with Siemens or other well-knownbrand electronic components

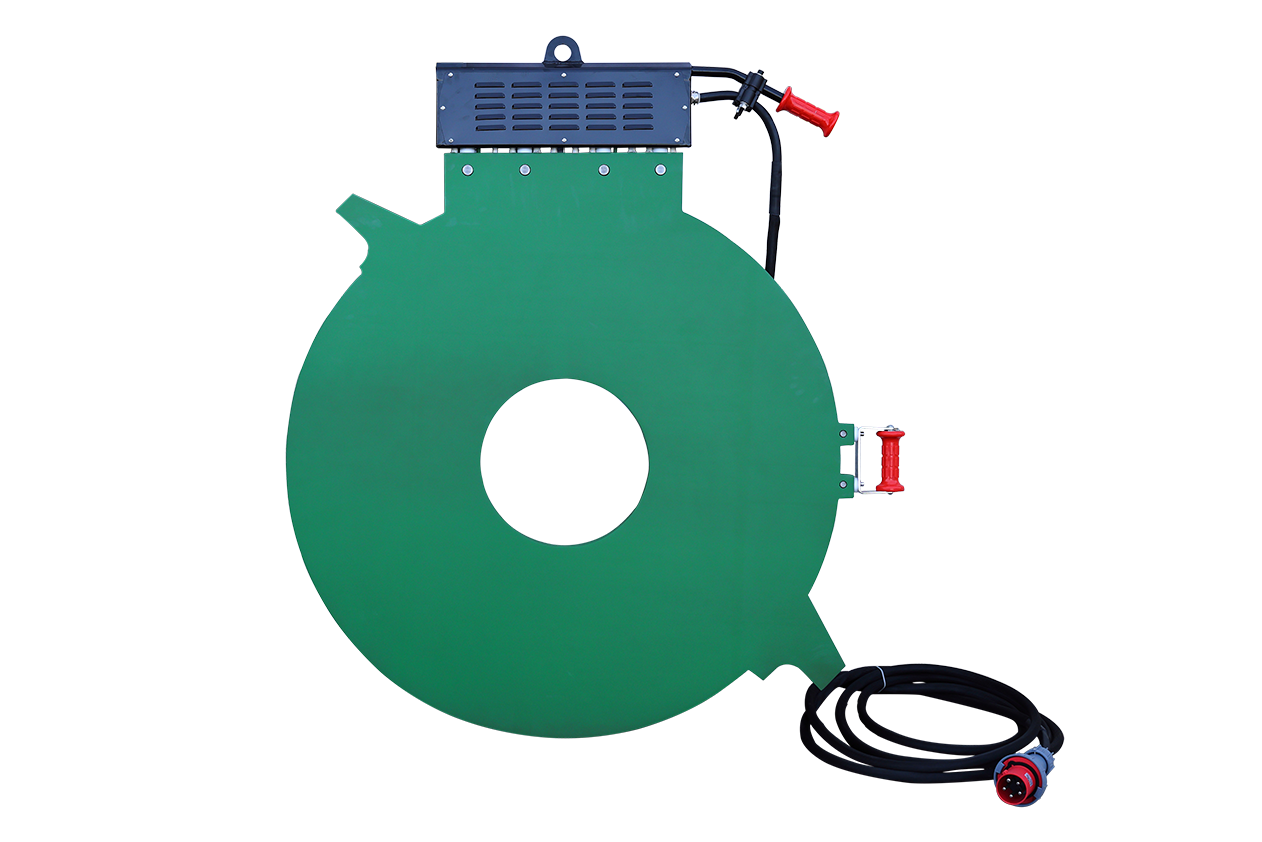

Heating plate
· Thickened cast aluminum body with built-inheating elements
· Anti-stick PEFT coating from Daikin
· Excellent teperature diavation control,ess than 7°C
· Qualified aviation plug and heavy-duty powercord ensure operation safety

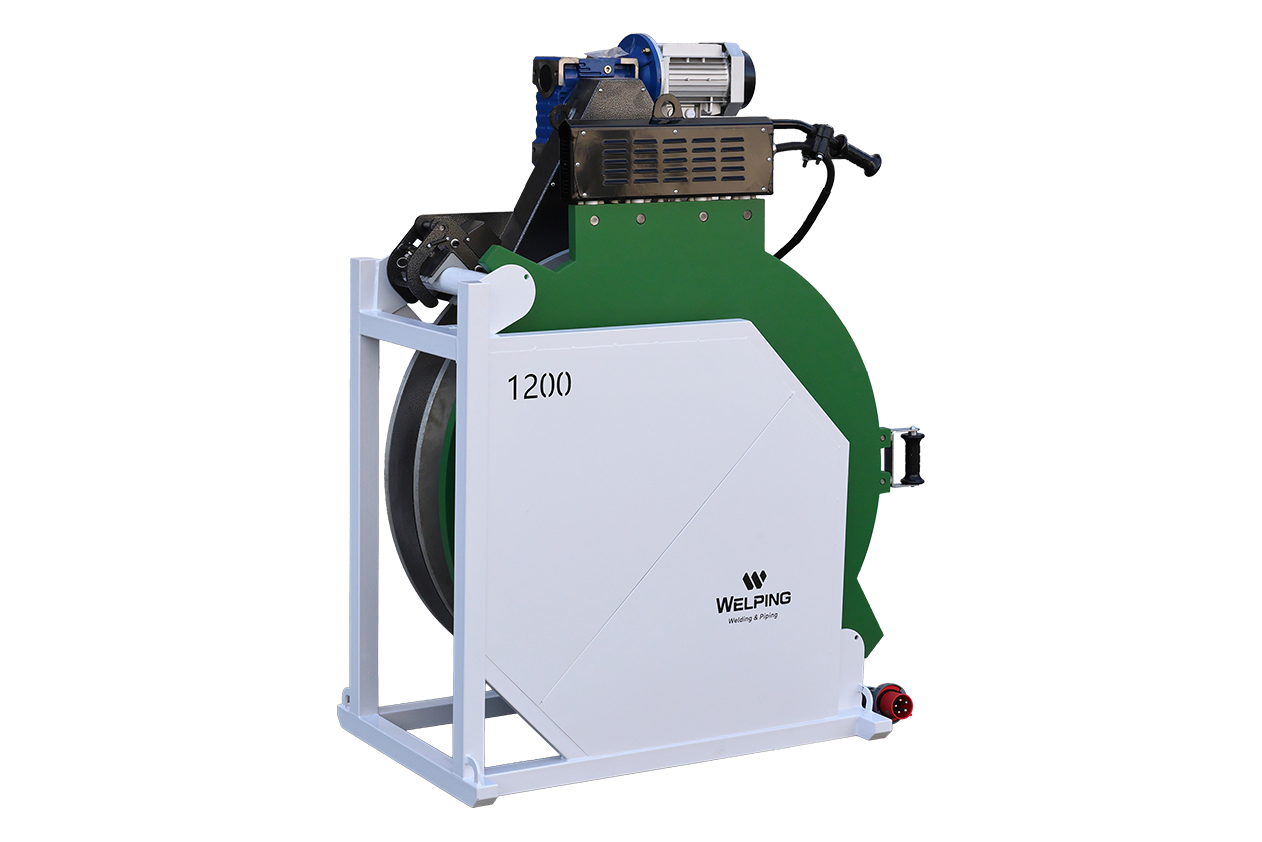

Facer (Milling Cutter)
· Reinforced chain drive with a self-tensioningdesign keeps the facer stable and helpsprevent loosening after long-term operatior
· Powerful copper-wiring motor
· Reinforced aluminum die-cast facer plate
· Durable, double edges HSS blades
· Innovative locking part,easy to use

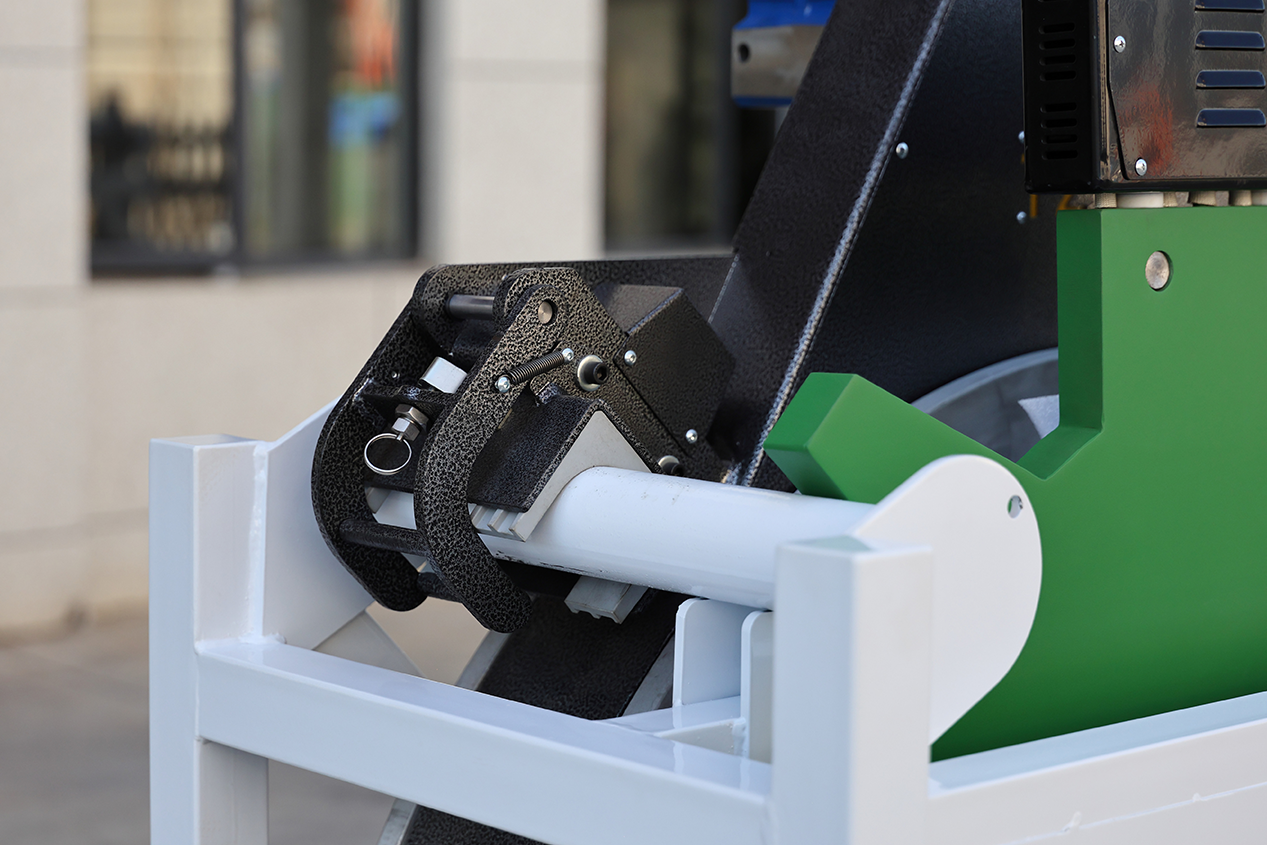

Tool holder
· Complete heating plate covers for betterprotection and heating conservation
· Wide base with lifting lugs
· For stable stock of facer and heating plate

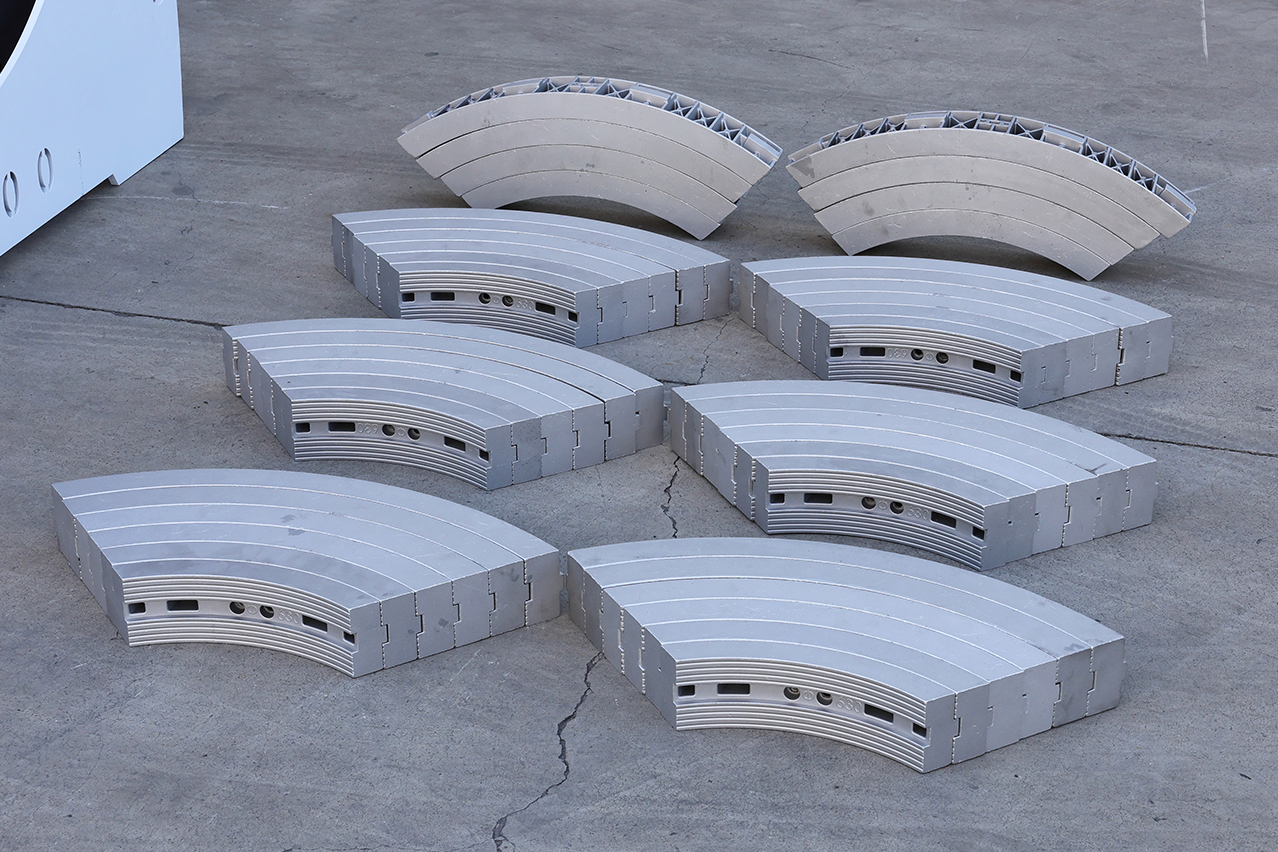

Clamp inserts
· The WP1200Adie-cast aluminum inserts for 630, 710, 800900,1000, and 1100 mm pipe sizes
· Quarter-circle die-cast aluminum insertswith a widened surface
· Designed for quick installation and removal
