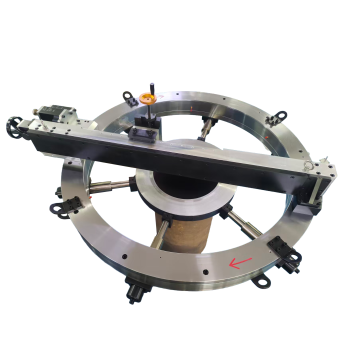

Manufacture Price Flange Facing Machine External Card Flange Processing Service Equipment(WPDS)
- group name
- external clamping
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WPDS
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Wed, 10 Jun 2026 14:06:49 GMT
Paramtents
Color green or blue
Volate 220V/110V
Application material Stainless steel,alloy steel,carbon steel
Beveling capacity 300-3000mm
Beveling method external clamping chamfering
Beveling type U,single V, double V,J-type
Packging & Delivery
-
Min Order1 piece
Briefing
Manufacture Price Flange Facing Machine External Card Flange Processing Service Equipment
Detailed
INTRODUCTION
WPDS Series Mounted Flange Facer machines are designed for precision facing and end-prepping of various types of flange surfaces. These machines feature a belt-driven system with adjustable cam tensioners powered by a pneumatic motor, ensuring accurate and consistent results. The slide and compound components are guided by a precision ball screw and linear rails, creating a rigid system with smooth travel for optimal performance.
The compound on these machines can swivel to any angle off vertical, offering versatility to machine a range of gasket surfaces.
Externally mounted, these flange facers securely clamp onto the outside diameter of the flange using quick-set adjustable legs and jaws. Similar to our ID mount models, these machines are also capable of machining a continuous groove spiral serrated flange finish. Additionally, some models can be configured to machine grooves for RTJ (Ring Type Joint) gaskets, providing further flexibility and functionality for various flange machining needs.
●The modular design concept enables quick installation and disassembly,meeting various processing environments.
●The equipment adopts precision circular guide rails, with long service life and high stability.
●The machine operates smoothly without vibration.
●High precision mechanical transmission mechanism ensures horizontal,inverted, and vertical installation of the machine.
●The fixed method adopts external card type multi angle support, which is more stable in fixation.
●The tool holder is rotatable to meet different processing environments.
PRODUCT IMAGES
PARAMETER
|
Model No.
|
Clamping Range
|
Working Range
|
Tool Travel
|
Tool Hoder | Rotation Speed | ||
Pneumatic | Numerical | Hydraulic | OD mm | mm | mm | Swivel Angel | |
WPDF-300 | WPDS-300 | / | Φ50-300 | Φ0-300 | 50 | ±30 degree | 0-28r/min |
WPDF-610 | WPDS-610 | WPDH-610 | Φ150-610 | Φ0-610 | 95 | ±30 degree | 0-24r/min |
WPDF-1000 | WPDS-1000 | WPDH-1000 | Φ500-1000 | Φ0-1000 | 95 | ±30 degree | 0-20r/min |
WPDF-1500 | WPDS-1500 | WPDH-1500 | Φ1000-1500 | Φ0-1500 | 95 | ±30 degree | 0-15r/min |
WPDF-2000 | WPDS-2000 | WPDH-2000 | Φ1500-2000 | Φ0-2000 | 95 | ±30 degree | 0-13r/min |
WPDF-2500 | WPDS-2500 | WPDH-2500 | Φ1500-2500 | Φ0-2500 | 95 | ±30 degree | 0-10r/min |
WPDF-3000 | WPDS-3000 | WPDH-3000 | Φ2500-3000 | Φ0-3000 | 95 | ±30 degree | 0-8r/min |
DOWNLOAD
WHAT WE CAN DO FOR YOU?
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.
We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.
WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
