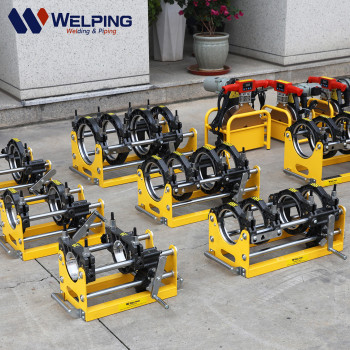

C Series Gear-Driven Manual Butt Fusion Machines for 40–250mm PE/PP Pipes
- group name
- Manual Butt Fusion Machines
- Min Order
- 1 piece
- brand name
- Fusion Equipment and Plumbing Tool｜WELPING
- model
- WP110C2, WP160C, WP160C2, WP200C, WP200C2, WP250C
- Nearest port for product export
- Shanghai, Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery
- Acceptable payment methods
- T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
- update time
- Thu, 16 Jul 2026 14:38:41 GMT
Paramtents
Product Type Manual Butt Fusion Machine
Welding Range 40–250mm
Applicable Pipe PE, PP, HDPE Plastic Pipe
Operation Type Manual Operation
Facing System Gear-Driven Facer
Frame Structure 4-Guide-Post Structure
Body Material All-Steel Welded Body
Packging & Delivery
-
Min Order1 piece
Briefing
C Series manual butt fusion machines cover 40–250mm PE/PP pipes, featuring gear-driven facing, solid steel body and smooth operation.
Detailed
C Series Manual Butt Fusion Machines
Gear-driven manual welding machines for 40–250mm PE/PP pipes
Choose the Right C Series Model
| Model | Welding Range | Recommended Use |
| WP110C2 | 40–110mm | Small pipe welding and repair work |
WP160C / WP160C2 | 63–160mm | Common small pipe installation |
| WP200C / WP200C2 | 63–200mm | Wider jobsite applications |
| WP250C | 63–250mm | Larger manual welding range |
Built for Smooth and Reliable Manual Welding
Full-Gear Driven Facing System
The full-gear driven facing system provides smoother transmission and more controlled pipe end preparation, helping operators achieve cleaner and more consistent fusion surfaces.
Stable 4-Guide-Post Frame
The 4-guide-post structure keeps pipe movement stable during clamping, facing, heating and fusion, helping improve alignment throughout the welding process.
Solid All-Steel Welded Body
The all-steel welded body gives the machine a strong and durable structure, making it suitable for repeated workshop and on-site pipe welding work.
Practical Manual Solution for 40–250mm Pipes
For small and medium pipe sizes, the C Series offers a practical balance between stable welding performance, simple manual operation and lower investment than hydraulic models.
Full-Gear Driven Facing for Smoother Operation
The gear-driven facing system provides stable transmission and smoother pipe end preparation. Compared with simple manual structures, it helps operators achieve cleaner and more consistent pipe facing before fusion.
Technical Specifications
| Model | Welding Range | Power Supply | Total Power | Heating Plate | Facer | Max Temp. | Temp. Deviation |
| WP110C2 | 40–110mm | 220V/50Hz, 1PH | 2.9kW | 1.5kW | 1.4kW | 270°C | ±5°C |
| WP160C/C2 | 63–160mm | 220V/50Hz, 1PH | 2.9kW | 1.5kW | 1.4kW | 270°C | ±5°C |
WP200C/C2 | 63–200mm | 220V/50Hz, 1PH | 3.2kW | 1.8kW | 1.4kW | 270°C | ±5°C |
| WP250C | 63–250mm | 220V/50Hz, 1PH | 4.3kW | 2.3kW | 2.0kW | 270°C | ±5°C |
Manual Control, Practical Choice
For many small and medium pipe welding jobs, a manual butt fusion machine is a practical choice. It is easier to move, simple to operate and more economical than hydraulic models, while still providing stable performance for daily pipe welding work.
Need Help Choosing a Model?
Tell us your pipe size, pipe material and jobsite requirements. We can help you choose the right C Series model for your application.
