HDPE Butt Fusion Data Logger with Welding Record & Traceability | Tracker 7 / Tracker 10

group name: Fusion Data Loggers

Min Order: 1 piece

brand name: Fusion Equipment and Plumbing Tool｜WELPING

model: Tracker 7 / Tracker 10

Nearest port for product export: Shanghai, Ningbo

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDU, Express Delivery

Acceptable payment methods: T/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union

update time: Mon, 14 Sep 2026 18:41:37 GMT

contact supplier

Paramtents

Application HDPE Pipe Butt Fusion Welding
Welding Standards ISO 21307 / DVS 2207 / GOST R 55276 / Custom
Data Monitoring Pressure / Heating Plate Temperature / Ambient Temperature
Data Storage More than 10,000 Welding Records
Printing USB / CSV / Local Storage / TF Card
Language Support 9 Languages
Printing Serial / Bluetooth Printer
Communication RS485 / TCP / BLE Bluetooth

Packging & Delivery

Min Order1 piece

Briefing

Professional data logger for HDPE butt fusion welding, featuring real-time pressure and temperature monitoring, welding guidance, data recording, export, printing and joint traceability. Supports ISO 21307, DVS 2207, GOST R 55276 and custom welding parameters.

Detailed

Product Overview

Professional Data Logger for HDPE Butt Fusion Welding

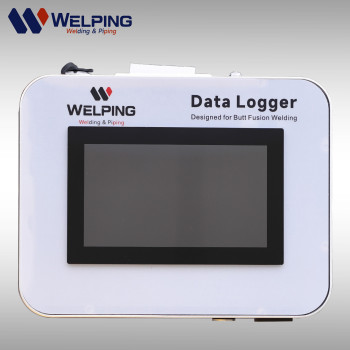

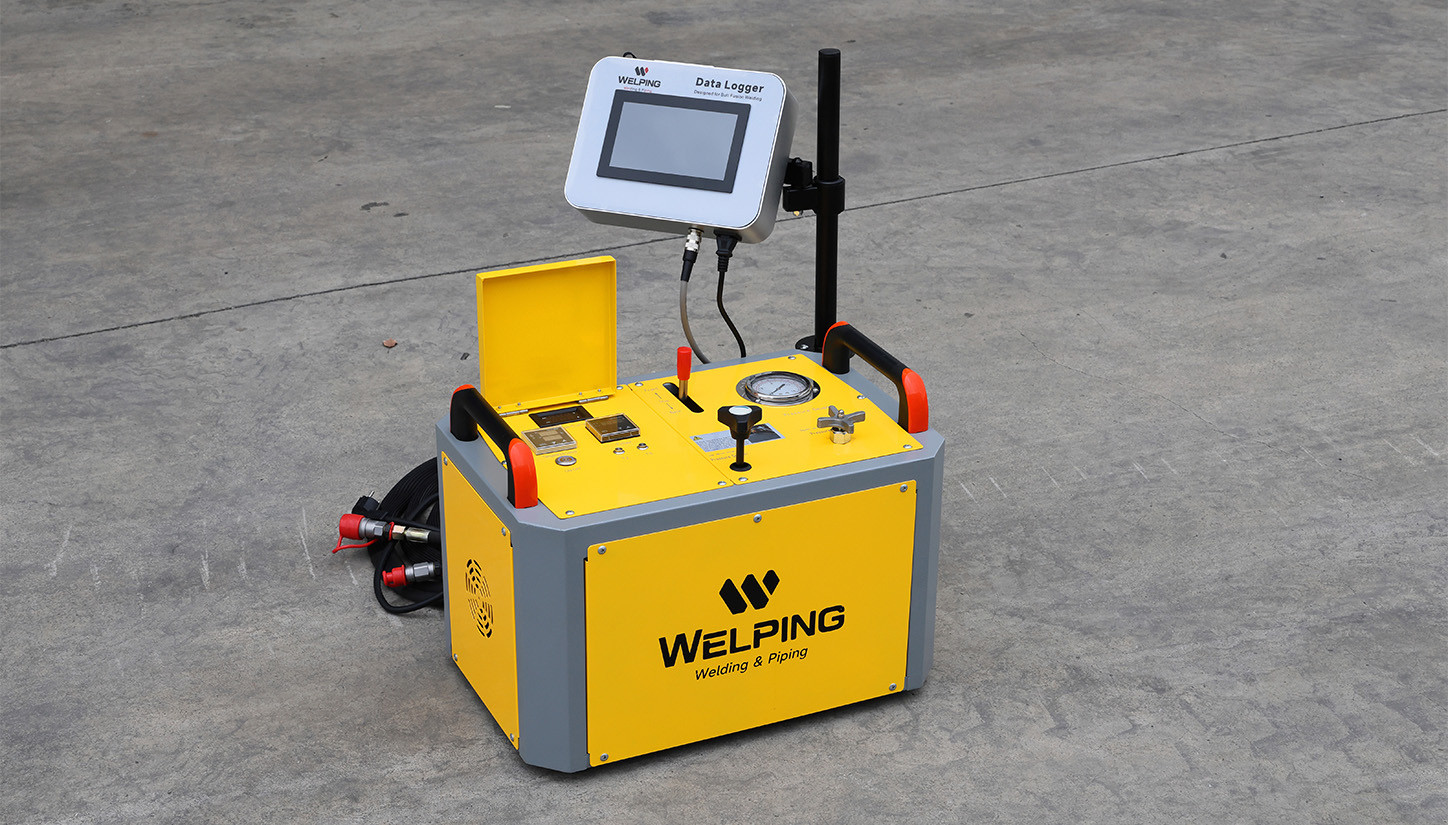

Tracker 7 / Tracker 10 is a professional data logger designed for HDPE pipe butt fusion welding. It monitors welding pressure, heating plate temperature and ambient temperature in real time while recording key data throughout the welding process.

The system combines welding parameter setup, step-by-step guidance, data recording, result evaluation, data export and printing in one platform. It helps operators follow a controlled welding procedure while creating a traceable record for every completed joint.

Supports ISO 21307, DVS 2207, GOST R 55276 and custom welding parameters.

Real-Time Data Monitoring

Monitor Pressure & Temperature in Real Time

The system monitors and displays key welding data in real time, including:

· Ambient temperature

· Heating plate temperature

· Hydraulic pressure

Live pressure and temperature curves give operators a clear view of changing conditions throughout the welding process.

The display updates once per second and shows the latest 60 seconds of data.

13-Step Welding Guidance

Tracker 7 / Tracker 10 provides a 13-step guided welding workflow:

Preparation → Alignment Check → Clamping → Facing → Drag Pressure Recording → Pressurizing → Heating → Bead Formation → Heat Soak → Changeover → Pressure-Up → Cooling → Welding Record

Each step includes on-screen instructions together with relevant pressure, temperature, timing and standard values, helping operators follow the welding process more consistently.
